B64290A0674X830
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

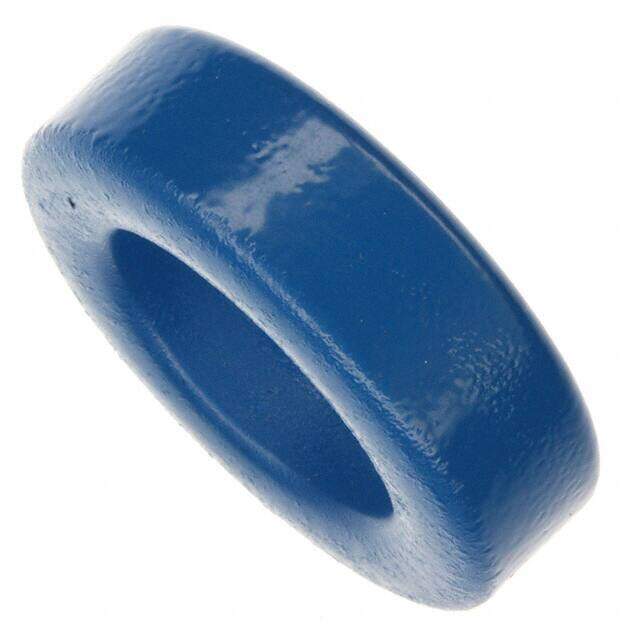

Ferrite Toroids / Ferrite Rings 36X23X15 N30 TOROID
PDF
/
Buying Options
Total Price: USD $4.91
Unit Price: USD $4.9104
≥1 USD $4.9104
≥10 USD $4.18
≥100 USD $3.180672
≥500 USD $3.089856
≥1000 USD $2.726328
≥3000 USD $2.544582
Inventory: 256
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Supplier Device Package R 36 x 23 x 15
Material N30
Technical
Published 2013
Series B64290
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Outside Diameter 36 mm
Finish Uncoated
Core Type Toroid
Gap Ungapped
Effective Area (Ae) mm2 95.89
Effective Length (le) mm 89.65
Effective Magnetic Volume (Ve) mm3 8597
Core Factor (ΣI/A) mm1 0.94
Initial Permeability (μi) 4300
Inductance Factor (Al) 5.75μH
Dimensions
Diameter 36.00mm
Height 15.00mm
Diameter - Inside 23 mm
Compliance
RoHS Status ROHS3 Compliant
