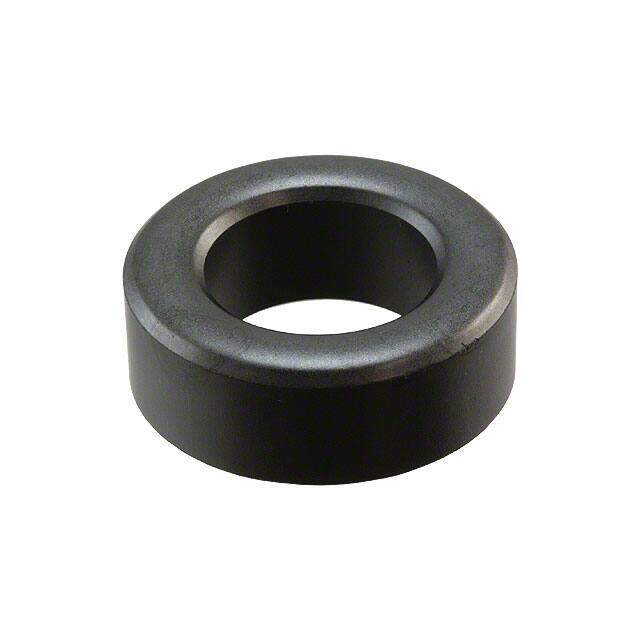

B64290A0044X035
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Toroids / Ferrite Rings 12.5X7.5X5 T35 TOROID
PDF
/
Inventory: 3245
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Supplier Device Package R 12.5 x 7.5 x 5
Material T35
Technical
Published 2013
Series B64290
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Outside Diameter 12.5 mm
Finish Uncoated
Core Type Toroid
Gap Ungapped
Effective Area (Ae) mm2 12.23
Effective Length (le) mm 30.09
Effective Magnetic Volume (Ve) mm3 368
Core Factor (ΣI/A) mm1 2.46
Initial Permeability (μi) 6000
Inductance Factor (Al) 3.06μH
Dimensions
Diameter 12.50mm
Height 5.00mm
Diameter - Inside 7.5 mm
Compliance
RoHS Status ROHS3 Compliant
