B62152A0004X001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description

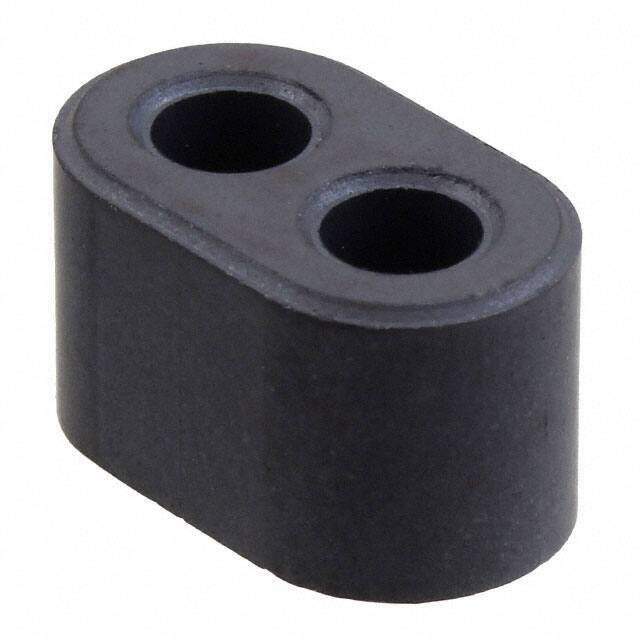

Ferrite Core Double-Aperture Core 14.5mm 8.5mm 8.3mm Broadband Transformers Automotive
PDF
/
Buying Options
Total Price: USD $2.12
Unit Price: USD $2.1208
≥1 USD $2.1208
≥10 USD $1.83216
≥100 USD $1.39216
≥500 USD $1.318944
≥1000 USD $1.172424
≥3000 USD $1.099155
Inventory: 2266
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 8.50mm
Length 14.50mm
Height 8.30mm
Technical
Inductance Factor (Al) 190nH
Initial Permeability (μi) 80
Core Factor (ΣI/A) mm1 0.54
Effective Magnetic Volume (Ve) mm3 435
Effective Length (le) mm 15.3
Effective Area (Ae) mm2 28.4
Gap Ungapped
Core Type Multi-Hole (2)
Finish Uncoated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±30%
Series B62152
Published 2013
Physical
Material K1
Supply Chain
Factory Lead Time 25 Weeks
