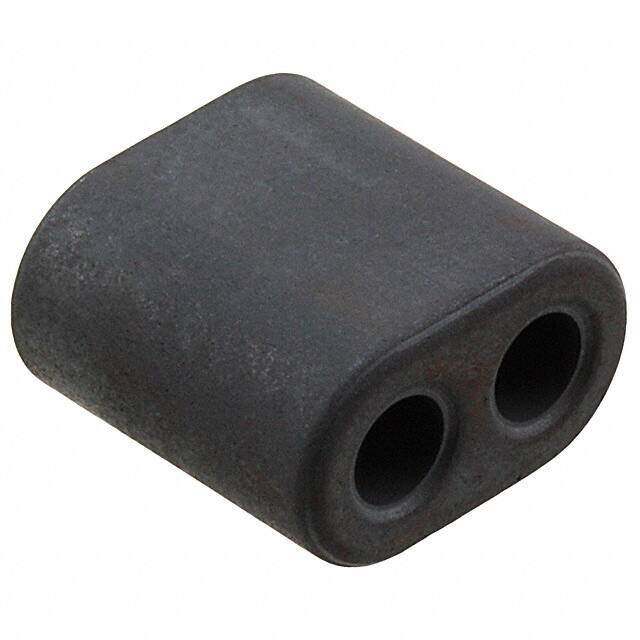

B62152A0001X001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
Ferrite Core Double-Aperture Core K1 330nH 30%
PDF
/
Buying Options
Total Price: USD $2.24
Unit Price: USD $2.2352
≥1 USD $2.2352
≥10 USD $1.92808
≥100 USD $1.465376
≥500 USD $1.388112
≥1000 USD $1.233848
≥3000 USD $1.156742
Inventory: 2139
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Physical
Material K1
Technical
Published 2013
Series B62152
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Finish Uncoated
Core Type Multi-Hole (2)
Gap Ungapped
Effective Area (Ae) mm2 49.7
Effective Length (le) mm 15.3
Effective Magnetic Volume (Ve) mm3 760
Core Factor (ΣI/A) mm1 0.31
Initial Permeability (μi) 80
Inductance Factor (Al) 330nH
Dimensions
Height 14.50mm
Length 14.50mm
Width 8.50mm
Compliance
RoHS Status ROHS3 Compliant
