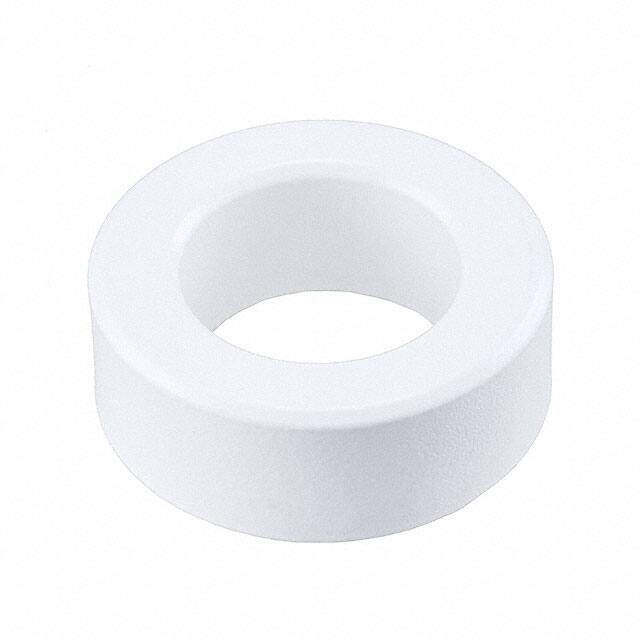

TX55/32/18-3C94
RoHS
/
Package /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
FERRITE CORES ROUND
PDF
/
Buying Options
Total Price: USD $12.56
Unit Price: USD $12.557422
≥1 USD $12.557422
≥10 USD $11.846627
≥100 USD $11.176066
≥500 USD $10.543453
≥1000 USD $9.946657
Inventory: 4001
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Supplier Device Package TX 55 x 32 x 18
Material 3C94
Technical
Published 2016
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Finish Epoxy
Core Type Toroid
Gap Ungapped
Effective Area (Ae) mm2 202
Effective Length (le) mm 132
Effective Magnetic Volume (Ve) mm3 26580
Core Factor (ΣI/A) mm1 0.651
Effective Permeability (μe) 2300
Dimensions
Diameter 57.50mm
Height 19.20mm
