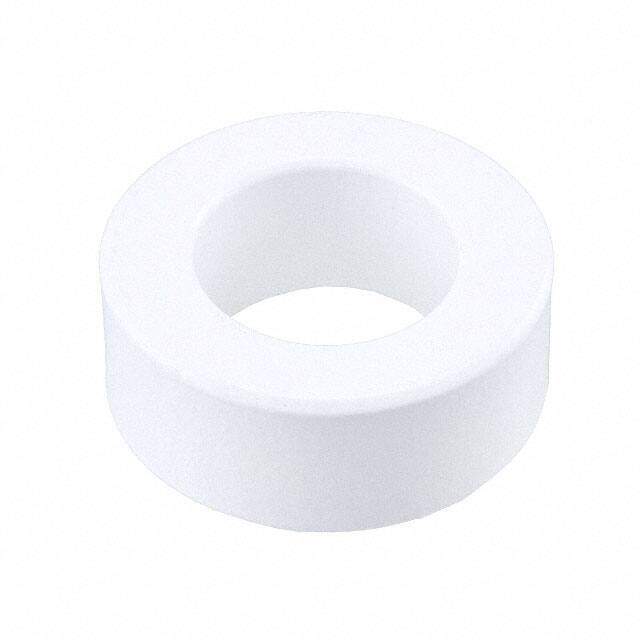

TX51/32/19-3E65
RoHS
/
Package /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
FERRITE CORES ROUND
PDF
/
Inventory: 9125
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Supplier Device Package TX 51 x 32 x 19
Technical
Published 2016
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Finish Epoxy
Core Type Toroid
Gap Ungapped
Effective Area (Ae) mm2 172
Effective Length (le) mm 125
Effective Magnetic Volume (Ve) mm3 21500
Core Factor (ΣI/A) mm1 0.73
Effective Permeability (μe) 5200
Dimensions
Diameter 52.55mm
Height 19.90mm
