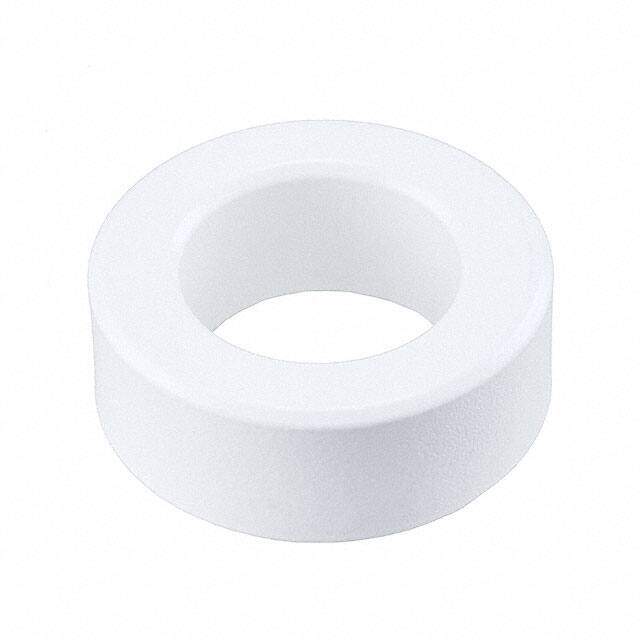

TX42/26/18-3E27 image
Favorite
TX42/26/18-3E27 image
Favorite

TX42/26/18-3E27

Ferroxcube
RoHS
/
Package /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description FERRITE CORES ROUND
PDF
/
Buying Options
Total Price: USD $5.24
Unit Price: USD $5.236
≥1 USD $5.236
≥10 USD $4.45896
≥100 USD $3.413344
Inventory: 457
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Supplier Device Package TX 42 x 26 x 18
Material 3E27

Technical

Published 2016
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Finish Epoxy
Core Type Toroid
Gap Ungapped
Effective Area (Ae) mm2 134
Effective Length (le) mm 103
Effective Magnetic Volume (Ve) mm3 13810
Core Factor (ΣI/A) mm1 0.769
Effective Permeability (μe) 5500

Dimensions

Diameter 43.15mm
Height 18.70mm
