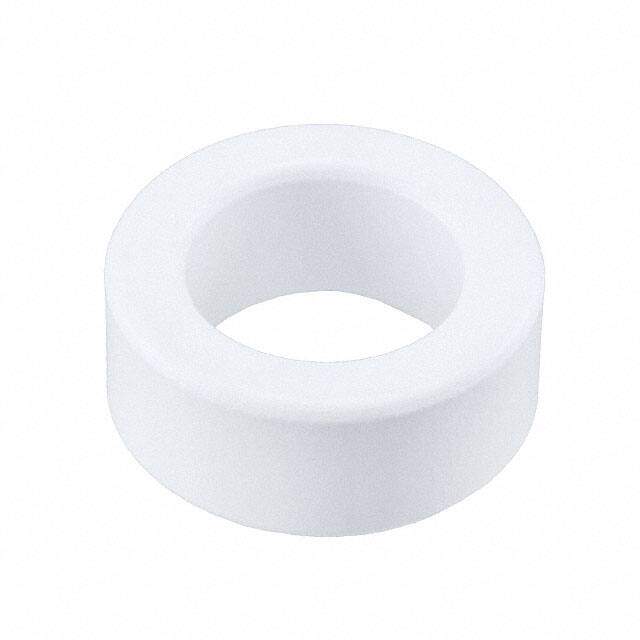

TX29/19/15-3E10-M
RoHS
/
Package /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
FERRITE CORES ROUND
PDF
/
Buying Options
Total Price: USD $1.86
Unit Price: USD $1.8568
≥1 USD $1.8568
≥10 USD $1.60072
≥100 USD $1.024162
≥500 USD $0.822545
≥1000 USD $0.80014
Inventory: 148
Minimum: 1
-
+
Technical Details
Dimensions
Height 16.05mm
Diameter 29.95mm
Technical
Effective Permeability (μe) 10000
Core Factor (ΣI/A) mm1 0.98
Effective Magnetic Volume (Ve) mm3 5410
Effective Length (le) mm 73.2
Effective Area (Ae) mm2 73.9
Gap Ungapped
Core Type Toroid
Finish Epoxy
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Tolerance ±30%
Published 2016
Physical
Supplier Device Package TX 29 x 19 x 15
Supply Chain
Factory Lead Time 8 Weeks
