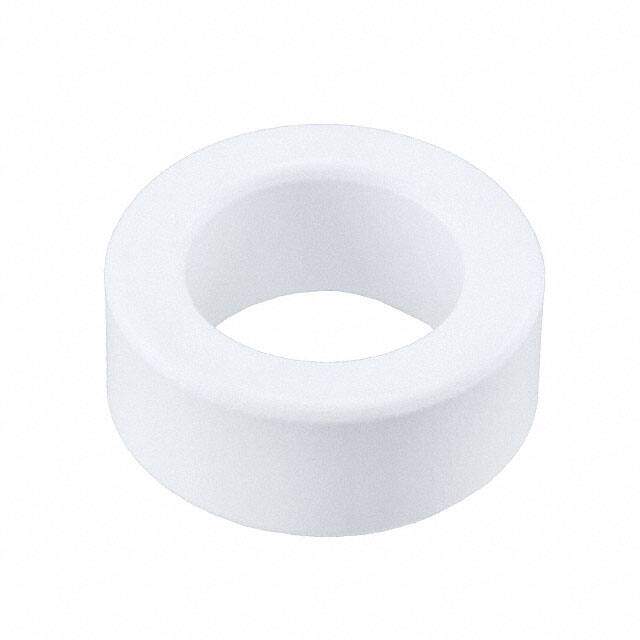

TX25/15/13-3E65
RoHS
/
Package /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
FERRITE CORES ROUND
PDF
/
Buying Options
Total Price: USD $1.99
Unit Price: USD $1.9888
≥1 USD $1.9888
≥10 USD $1.71512
≥100 USD $1.303456
≥500 USD $1.234816
≥1000 USD $1.028975
≥3000 USD $0.96037
Inventory: 375
Minimum: 1
-
+
Technical Details
Dimensions
Height 13.70mm
Diameter 25.95mm
Technical
Effective Permeability (μe) 5200
Core Factor (ΣI/A) mm1 0.97
Effective Magnetic Volume (Ve) mm3 3740
Effective Length (le) mm 60.1
Effective Area (Ae) mm2 62.1
Gap Ungapped
Core Type Toroid
Finish Epoxy
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Tolerance ±25%
Published 2016
Physical
Supplier Device Package TX 25 x 15 x 13
Supply Chain
Factory Lead Time 8 Weeks
