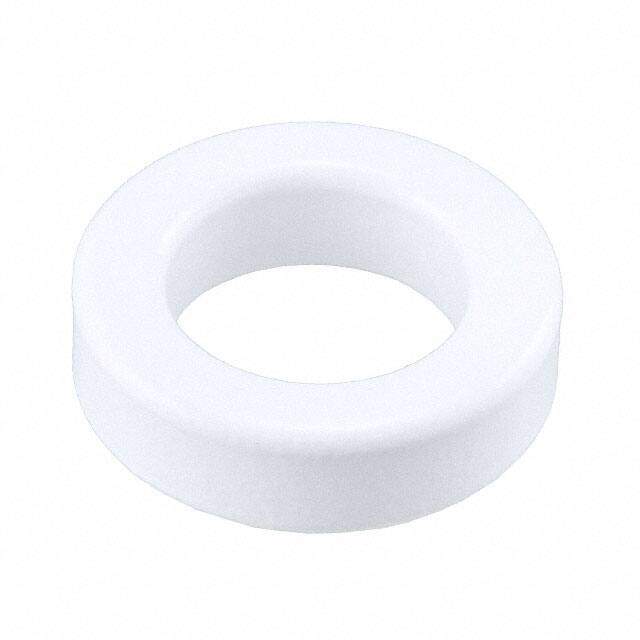

TX22/14/6.4-3E10-M
RoHS
/
Package /
Category Magnetics - Transformer, Inductor Components / Ferrite Cores
Description
FERRITE CORES ROUND
PDF
/
Buying Options
Total Price: USD $0.66
Unit Price: USD $0.66
≥1 USD $0.66
≥10 USD $0.59576
≥100 USD $0.44176
≥500 USD $0.419584
≥1000 USD $0.388784
Inventory: 430
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Supplier Device Package TX 22 x 14 x 6.4
Technical
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Finish Epoxy
Core Type Toroid
Gap Ungapped
Effective Area (Ae) mm2 24.8
Effective Length (le) mm 54.2
Effective Magnetic Volume (Ve) mm3 1340
Core Factor (ΣI/A) mm1 2.2
Dimensions
Diameter 22.35mm
Height 6.75mm
