BLM18HE102SN1D
RoHS
RoHS compliant
RoHS compliantPackage 0603 (1608 Metric)
Category Filters / Ferrite Beads and Chips
Description
FERRITE BEAD 1 KOHM 0603 1LN
PDF
/
Buying Options
Total Price: USD $0.03
Unit Price: USD $0.025156
≥1 USD $0.025156
≥10 USD $0.020152
≥100 USD $0.017373
≥500 USD $0.015705
≥1000 USD $0.01426
≥8000 USD $0.013481
Inventory: 28383
Minimum: 1
-
+
Technical Details
Technical
Subcategory Other Passive Filters
Packing Method TR, PAPER, 7 INCH
Number of Functions 1
Depth 800μm
Construction Chip Bead
Current Rating 600mA
Military Standard Not
Case Code (Metric) 1608
Case Code (Imperial) 0603
Test Frequency 100MHz
Impedance 1kOhm
Max DC Current 600mA
Filter Type Signal Line
DC Current 600mA
Number of Lines 1
DC Resistance (DCR) (Max) 350mOhm
Impedance @ Frequency 1kOhm @ 100MHz
HTS Code 8504.50.80.00
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Tolerance 25%
Size / Dimension 0.063Lx0.032W 1.60mmx0.80mm
Series EMIFIL?, BLM18
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Dimensions
Height 800μm
Width 0.8mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Physical
Core Material Ferrite
Material Ferrite, Steel
Number of Pins 2
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Supply Chain
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 7 Weeks

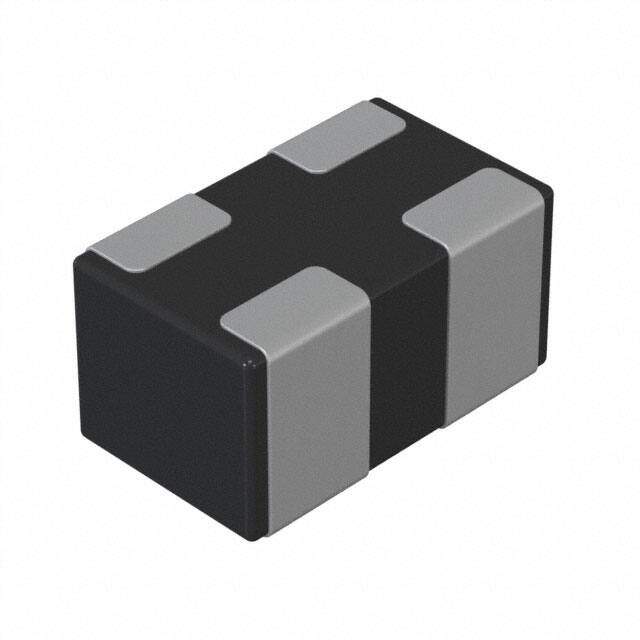

Alternative Model
