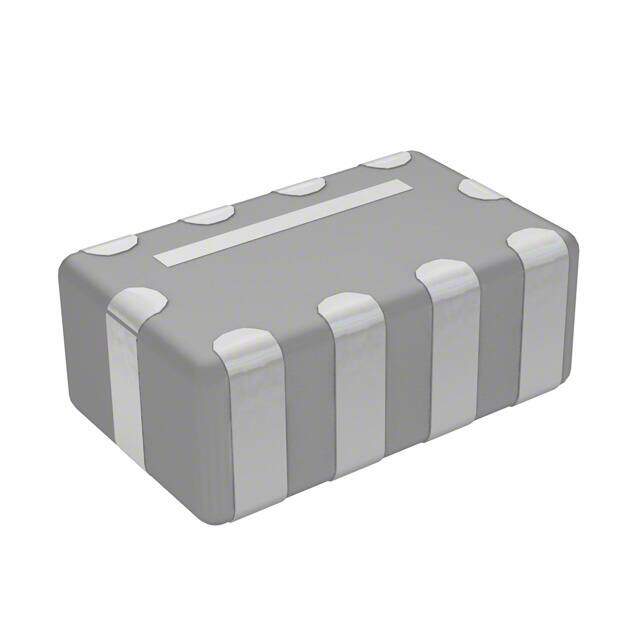

BLA2AAG102SN4D image
Favorite
BLA2AAG102SN4D image
Favorite

BLA2AAG102SN4D

Murata Electronics
RoHS
RoHS RoHS compliant
Package 0804 (2010 Metric), Array, 8 PC Pad
Category Filters / Ferrite Beads and Chips
Description FERRITE BEAD 1 KOHM 0804 4LN
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3268
≥1 USD $0.3268
≥10 USD $0.2679
≥100 USD $0.25935
≥500 USD $0.25175
≥1000 USD $0.2432
Inventory: 12503
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 7 Weeks
Lifecycle Status IN PRODUCTION (Last Updated: 1 month ago)

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0804 (2010 Metric), Array, 8 PC Pad
Core Material Ferrite

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series EMIFIL?, BLA2
Size / Dimension 0.079Lx0.039W 2.00mmx1.00mm
Tolerance 25%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
Resistance 1.3Ohm
Terminal Finish Tin (Sn)
Additional Feature ARRAY TYPE
Shielding Unshielded
Number of Functions 4
Depth 1mm
Current Rating 50mA
Frequency 100MHz
Military Standard Not
Case Code (Metric) 2010
Case Code (Imperial) 0804
Physical Dimension L2.0XB1.0XH0.5 (mm)/L0.079XB0.039XH0.02 (inch)
Test Frequency 100MHz
Impedance 1kOhm
Max DC Current 50mA
DC Current 50mA
Number of Lines 4
DC Resistance (DCR) (Max) 1.3Ohm
Impedance @ Frequency 1kOhm @ 100MHz

Dimensions

Height 500μm
Length 2mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
