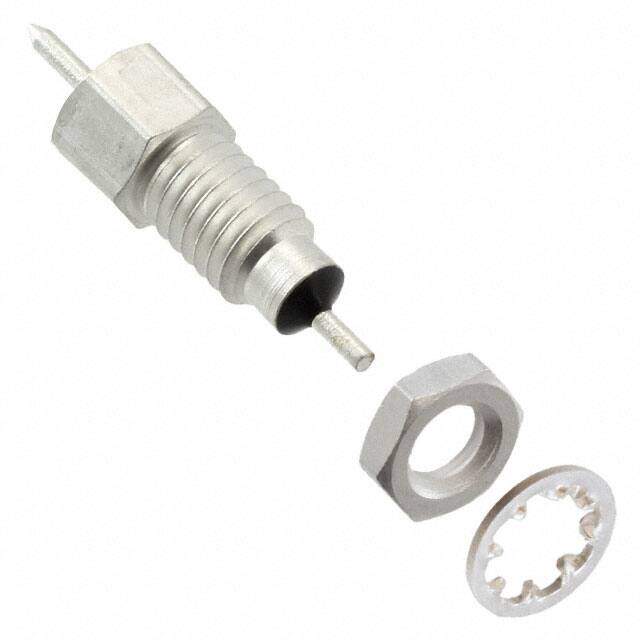

54-786-014
RoHS
/
Package Axial, Bushing
Category Filters / Feed Through Capacitors
Description
EMI Feedthrough Filters EMI FILTER
PDF
/
Inventory: 7002
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Chassis Mount
Package / Case Axial, Bushing
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Size / Dimension 0.218Diax0.500L 5.54mmx12.70mm
Tolerance -20% +80%
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Voltage - Rated 50V
Additional Feature C-TYPE CIRCUIT
HTS Code 8504.50.80.00
Capacitance 1μF
Number of Functions 1
Physical Dimension D5.54XH12.67 (mm)/D0.218XH0.499 (inch)
Current 10A
Filter Type FEED THROUGH CAPACITOR
Thread Size 10-32
DC Resistance (DCR) (Max) 10mOhm
Insertion Loss 70dB @ 100MHz
Dimensions
Diameter 5.54mm
Height 12.67mm
Compliance
RoHS Status Non-RoHS Compliant
