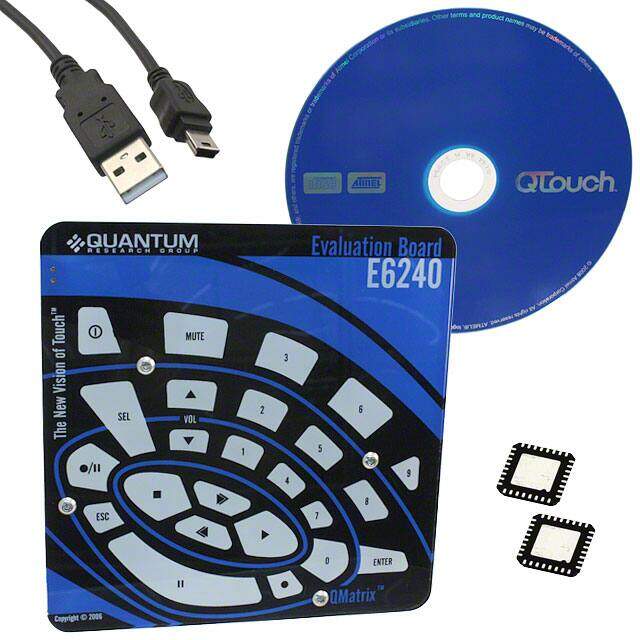

E6240
RoHS
RoHS compliant
RoHS compliantPackage /
Category Development Boards, Kits, Programmers / Evaluation Boards - Sensors
Description
KIT EVAL/DEV USING QT60240-ISG
PDF
/
Buying Options
Total Price: USD $199.48
Unit Price: USD $199.475462
≥1 USD $199.475462
≥201 USD $79.59325
≥501 USD $76.933314
≥999 USD $75.619101
Inventory: 1394
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 7.5mm
Length 11.55mm
Height Seated (Max) 2.64mm
Technical
ROM Programmability OTPROM
Sensing Range 16 / 24 Buttons/Keys
Embedded No
RAM (bytes) 96
CPU Family PIC
On Chip Program ROM Width 14
Sensor Type Touch, Capacitive
ROM (words) 1024
Evaluation Kit Yes
Supplied Contents Board(s), Cable(s)
Utilized IC / Part QT60160, QT60240
DAC Channels NO
PWM Channels NO
DMA Channels NO
Has ADC NO
Bit Size 8
Clock Frequency 4MHz
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Speed 1 MHz
Number of I/O 13
Interface I2C, USB
Temperature Grade COMMERCIAL
Power Supplies 3.3/5V
Operating Supply Voltage 5.5V
JESD-30 Code R-PDSO-G18
Pin Count 18
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 1.27mm
Supply Voltage 5V
Peak Reflow Temperature (Cel) 260
Terminal Form GULL WING
Terminal Position DUAL
Voltage - Supply 5V
Technology CMOS
Subcategory Microcontrollers
HTS Code 8542.31.00.01
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Matte Tin (Sn) - annealed
ECCN Code 3A991.A.2
Number of Terminations 18
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series Quantum, QMatrix?
Published 2006
Packaging Box
Physical
Mount Cable
