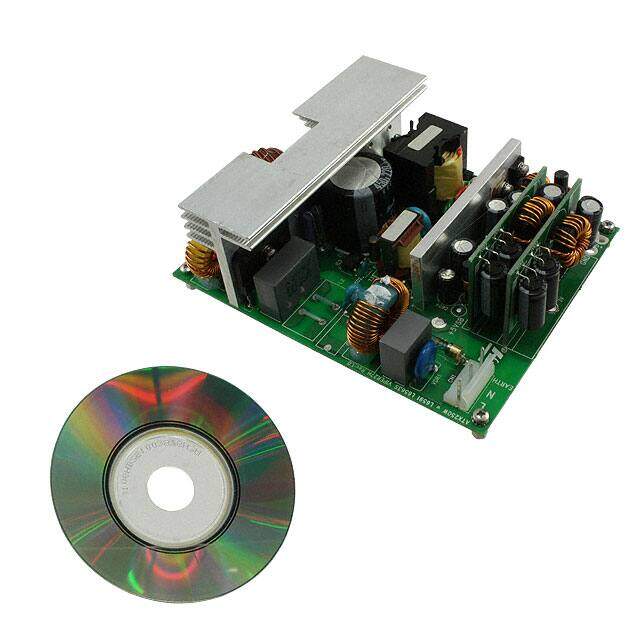

STEVAL-ISA145V1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Development Boards, Kits, Programmers / Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Description
BOARD DEMO SMPS L6591/L6563S
PDF
/
Inventory: 5615
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Regulator Topology Flyback
Outputs and Type 4, Isolated
Main Purpose Power Supply, ATX
Power - Output 250W
Board Type Fully Populated
Evaluation Kit Yes
Supplied Contents Board(s)
Utilized IC / Part L6563S, L6591, L6727, VIPer27H
Frequency - Switching 80kHz
Voltage - Output 3.3V 5V 5V 12V
Current - Output 13.5A 12A 8A 2A
Voltage - Input 88V~264VAC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series VIPer? plus
