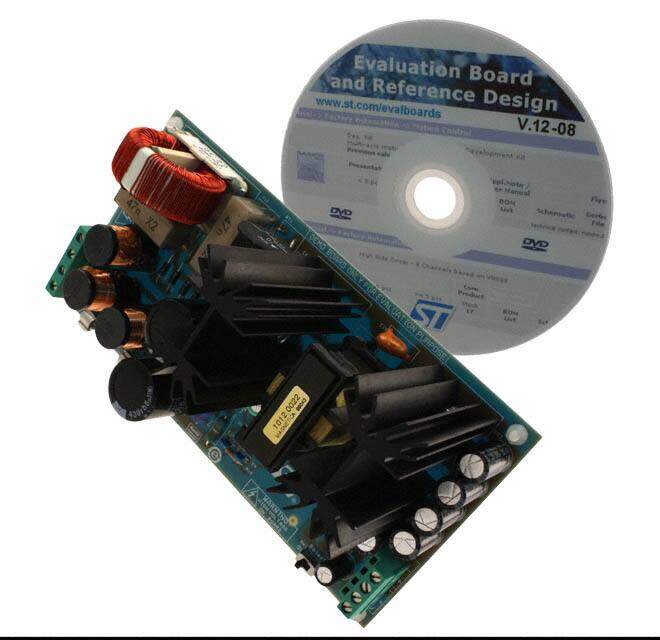

STEVAL-ISA054V1
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Development Boards, Kits, Programmers / Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Description
BOARD DEMO STW9N150 100W 3PHASE
PDF
/
Inventory: 7386
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Package / Case 100
Technical
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Voltage - Input 180V~265VAC 320V~480VAC
Current - Output 4A 1A
Voltage - Output 24V 3.3V or 5V
Frequency - Switching 250kHz
Utilized IC / Part L5970, STW9N150, UC3844B
Supplied Contents Board(s)
Evaluation Kit Yes
Board Type Fully Populated
Power - Output 100W
Main Purpose AC/DC, Primary Side
Outputs and Type 2, Isolated
Regulator Topology Flyback
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
