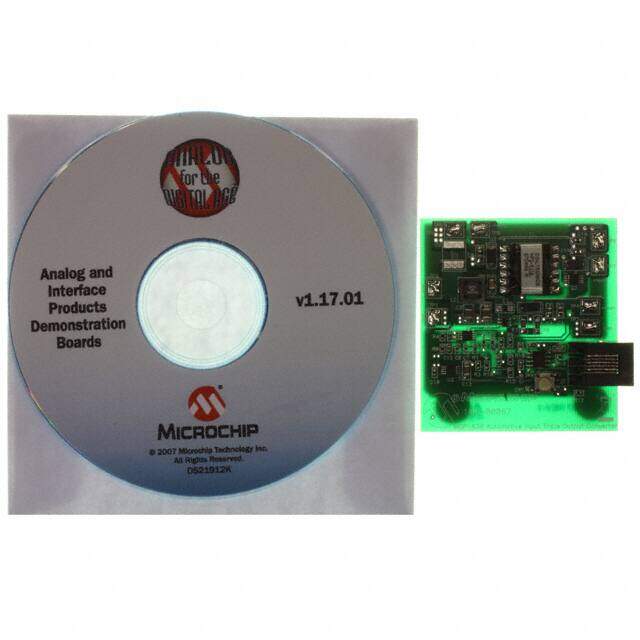

MCP1630DM-DDBK4
RoHS
RoHS compliant
RoHS compliantPackage /
Category Development Boards, Kits, Programmers / Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS
Description
BOARD CONV DEMO MCP1630 TRPL-OUT
PDF
/
Inventory: 5602
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Technical
Regulator Topology Buck
Outputs and Type 3, Non-Isolated
Main Purpose DC/DC, Step Down
Board Type Fully Populated
Evaluation Kit Yes
Supplied Contents Board(s)
Utilized IC / Part MCP1630
Frequency - Switching 250kHz
Voltage - Output 1.2V 3.3V 4.7V
Current - Output 1.2A 600mA 150mA
Voltage - Input 6.5V~40V
Base Part Number MCP1630
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2005
