9185
RoHS
/
Package /
Category Test and Measurement / Equipment - Power Supplies (Test, Bench)
Description

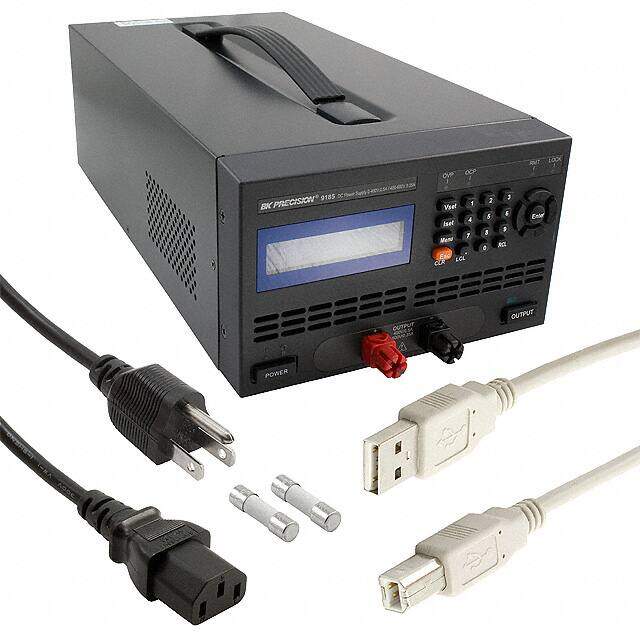

Bench Top Power Supplies 0-400,V05A/400-600V 0.35A DC PowerSupply
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.2376
≥1 USD $0.2376
≥10 USD $0.20416
≥100 USD $0.179872
≥500 USD $0.165264
≥1000 USD $0.15884
≥3000 USD $0.142595
Inventory: 1187
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Width 130.5052mm
Length 415.0106mm
Height 86.995mm
Technical
Current Regulation - Line 0.01% + 250μA
Current Regulation - Load 0.01% + 250μA
Accuracy - Voltmeter; Ammeter 0.05% + 100mV; 0.1% + 0.1mA
Voltage Regulation - Load 0.01% + 1mV
Voltage Regulation - Line 0.01% + 1mV
Ripple 4.5mV rms, 45mV p-p
Display Type LCD
Current - Output 1 500mA
Voltage - Output 0V~600VDC
Output Power 210W
Current - Output 0A~0.5A
Wire/Cable Type Power Cord
Voltage - Output 1 600V
Number of Outputs 1
Voltage - Supply 115VAC 230VAC
Max Power Dissipation 210W
Power Rating 210W
Power (Watts) 210W
Type Bench (AC to DC)
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Feature Memory, Programmable, Tracking, USB Interface
Size / Dimension 16.339Lx8.268W x 5.138 H 415.00mmx210.00mmx130.50mm
Series 9180
Packaging Bulk
Physical
Weight 23lbs 10.4kg
