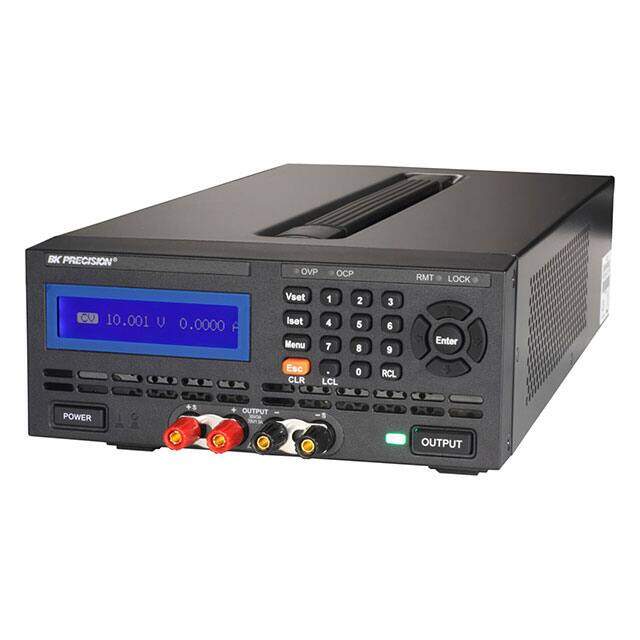

9181B
RoHS
/
Package /
Category Test and Measurement / Equipment - Power Supplies (Test, Bench)
Description
DC PWR SUPPLY 0-18V 8A/0-36V 4A
PDF
/
Buying Options
Total Price: USD $1073.61
Unit Price: USD $1073.6088
≥1 USD $1073.6088
Inventory: 38
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Current Regulation - Line 0.01% + 250μA
Current Regulation - Load 0.01% + 250μA
Accuracy - Voltmeter; Ammeter 0.05% + 5mV; 0.1% + 2mA
Voltage Regulation - Load 0.01% + 1mV
Voltage Regulation - Line 0.01% + 1mV
Ripple 3mV p-p, 0.35mV rms
Display Type LCD
Voltage - Output 0V~36VDC
Current - Output 0A~8A
Number of Outputs 1
Voltage - Supply 115VAC 230VAC
Power Rating 144W
Power (Watts) 144W
Type Bench (AC to DC)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Memory, Programmable, Tracking, USB Interface
Size / Dimension 16.339Lx8.268W x 3.425 H 415.00mmx210.00mmx87.00mm
Series 9180B
Physical
Weight 17lbs 7.7kg
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
