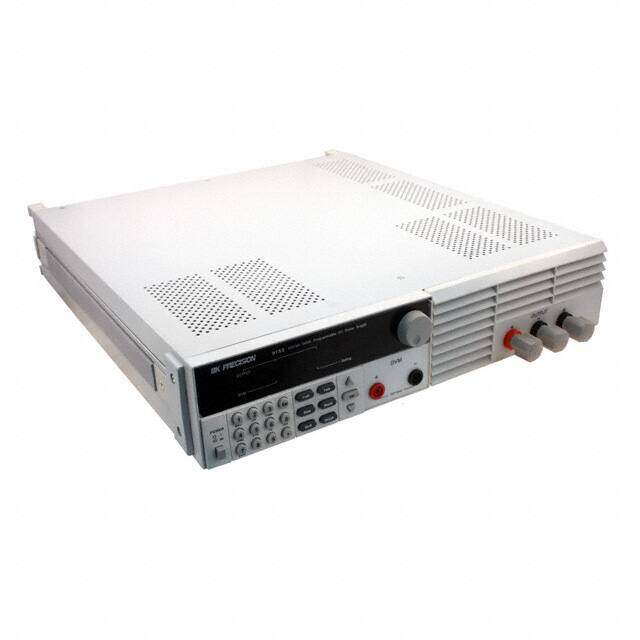

9151
RoHS
/
Package /
Category Test and Measurement / Equipment - Power Supplies (Test, Bench)
Description
POWER SUPPLY DC 20V/27A PROGRAM
PDF
/
Buying Options
Total Price: USD $0.91
Unit Price: USD $0.9064
≥1 USD $0.9064
≥10 USD $0.69344
≥100 USD $0.597344
≥500 USD $0.575872
≥1000 USD $0.4906
≥3000 USD $0.426624
Inventory: 41
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Weight 64lbs 29kg
Technical
Series 9150
Size / Dimension 18.060Lx16.880W x 3.470 H 458.72mmx428.75mmx88.14mm
Feature Memory, Programmable, RS232 Port
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Bench (AC to DC)
Power (Watts) 540W
Power Rating 540W
Max Power Dissipation 540W
Voltage - Supply 110VAC 220VAC
Number of Outputs 1
Voltage - Output 1 20V
Wire/Cable Type Power Cord
Current - Output 0A~27A
Voltage - Output 0V~20VDC
Current - Output 1 27A
Display Type VFD
Ripple 4mV p-p
Voltage Regulation - Line 0.02% + 1mV
Voltage Regulation - Load 0.01% + 1mV
Accuracy - Voltmeter; Ammeter 0.02% + 3mV; 0.05% + 10mA
Current Regulation - Load 0.1% + 5mA
Current Regulation - Line 0.01% + 1mA
Dimensions
Height 88.2mm
Length 458.9mm
Width 429mm
Compliance
RoHS Status Non-RoHS Compliant
