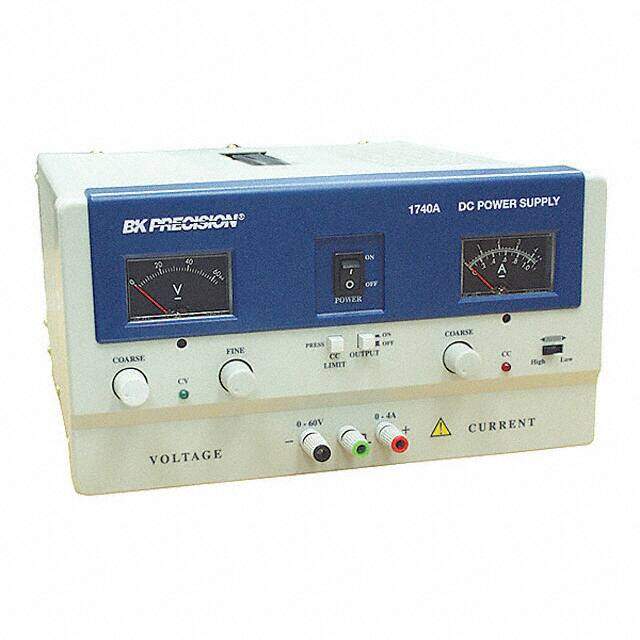

1740A
RoHS
/
Package /
Category Test and Measurement / Equipment - Power Supplies (Test, Bench)
Description
POWER SUPPLY 60V 4A ANALOG
PDF
/
Inventory: 7170
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Weight 23lbs 10.4kg
Technical
Series 1740
Size / Dimension 15.000Lx10.500W x 5.700 H 381.00mmx266.70mmx144.78mm
Feature Constant Current and Constant Voltage Indicators
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Type Bench (AC to DC)
Power Rating 450W
Voltage - Supply 120VAC
Number of Outputs 1
Voltage - Output 1 60V
Interface Analog
Current - Output 0A~4A
Output Power 450W
Voltage - Output 0V~60VDC
Current - Output 1 4A
Display Type Analog (2)
Ripple 1mV rms
Voltage Regulation - Line 0.2% + 2mV
Voltage Regulation - Load 0.04% + 2mV
Accuracy - Voltmeter; Ammeter 0.025
Current Regulation - Load 0.4% + 5mA
Current Regulation - Line 0.4% + 5mA
Dimensions
Height 144.78mm
Length 381mm
Width 266.7mm
Compliance
RoHS Status Non-RoHS Compliant
