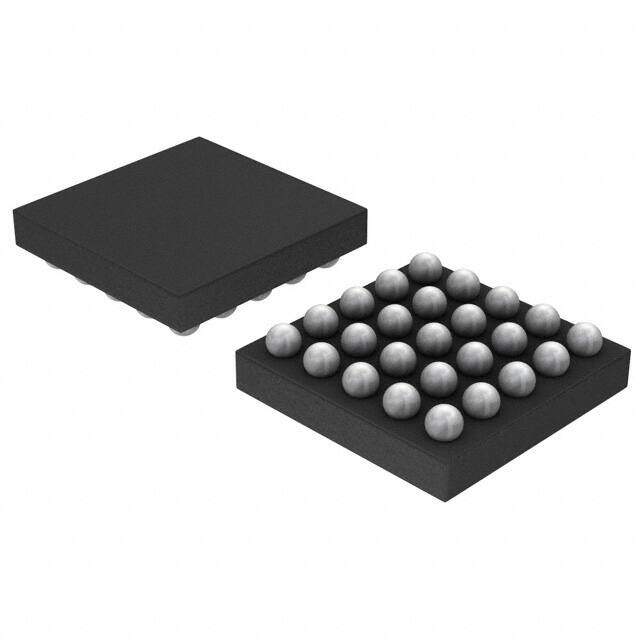

EMIF10-COM01C2
RoHS
RoHS compliant
RoHS compliantPackage 25-WFBGA, FCBGA
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description
FILTER RC(PI) 200 OHM/45PF SMD
PDF
/
Buying Options
Total Price: USD $0.37
Unit Price: USD $0.370806
≥1 USD $0.370806
Inventory: 2852
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 25-WFBGA, FCBGA
Technical
Operating Temperature -40°C~85°C
Packaging Cut Tape (CT)
Series EMIF
Size / Dimension 0.095Lx0.095W 2.41mmx2.41mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 25
Termination Flat
ECCN Code EAR99
Type Low Pass
Applications Data Lines for Mobile Devices
HTS Code 8504.50.80.00
Capacitance 45μF
Subcategory Data Line Filters
Packing Method TAPE AND REEL
Technology RC (Pi)
Number of Functions 10
Base Part Number EMIF10
Approval Agency IEC
Physical Dimension L2.42XB2.42XH0.695 (mm)/L0.095XB0.095XH0.027 (inch)
Power Supplies 8
Number of Channels 10
DC Resistance (DCR) (Max) 220Ohm
ESD Protection Yes
Filter Order 2nd
Values R = 200 Ω, C = 45pF (Total)
Resistance - Channel (Ω) 200
Dimensions
Height 0.030 0.76mm
Length 2.42mm
Width 2.42mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
