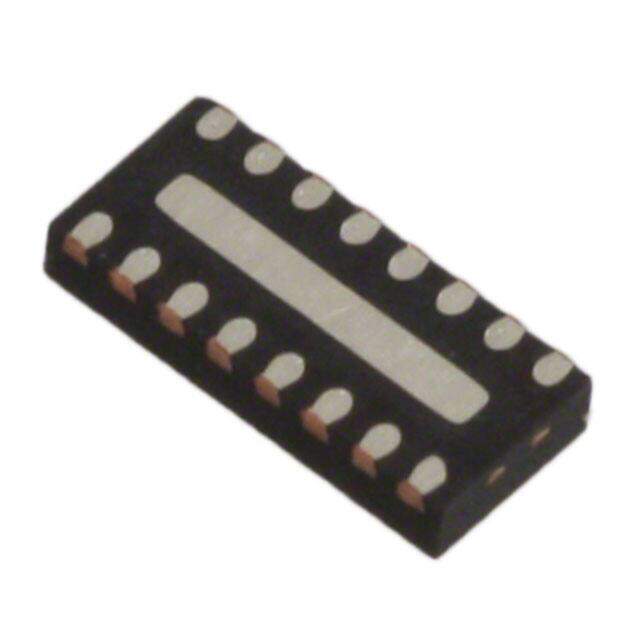

EMIF08-1502M16
RoHS
RoHS compliant
RoHS compliantPackage 16-UFDFN Exposed Pad
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description
FILTER RC(PI) 170 OHM/14PF SMD
PDF
/
Buying Options
Total Price: USD $1.12
Unit Price: USD $1.1176
≥1 USD $1.1176
≥10 USD $0.82104
≥100 USD $0.80256
≥500 USD $0.783904
≥1000 USD $0.70928
≥3000 USD $0.690589
Inventory: 1082
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 16-UFDFN Exposed Pad
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series EMIF
Size / Dimension 0.130Lx0.059W 3.30mmx1.50mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 16
Termination Flat
ECCN Code EAR99
Type Low Pass
Applications Data Lines for Mobile Devices
Capacitance 16.5μF
Subcategory Data Line Filters
Packing Method TAPE AND REEL
Technology RC (Pi)
Number of Functions 8
Depth 1.6mm
Base Part Number EMIF08
Approval Agency IEC
Physical Dimension L3.4XB1.6XH0.6 (mm)/L0.134XB0.063XH0.024 (inch)
Number of Channels 8
Current 10mA
ESD Protection Yes
Attenuation Value 30dB @ 900MHz ~ 1.8GHz
Filter Order 2nd
Values R = 170 Ω, C = 14pF (Total)
Resistance - Channel (Ω) 170
Center / Cutoff Frequency 300MHz Cutoff
Dimensions
Height 0.024 0.60mm
Length 3.4mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
