EMIF06-SD03F3
RoHS
RoHS compliant

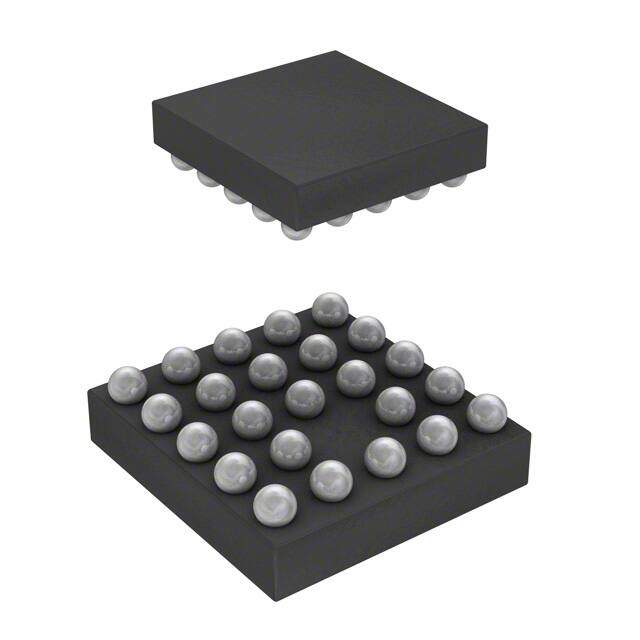

RoHS compliantPackage 24-WFBGA, FCBGA
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description
FILTER RC(PI) 50 OHM/15PF SMD
PDF
/
Buying Options
Total Price: USD $0.75
Unit Price: USD $0.746706
≥1 USD $0.746706
Inventory: 5039
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2.1mm
Length 2.1mm
Height 0.026 0.65mm
Technical
Resistance - Channel (Ω) 50
Values R = 50 Ω, C = 15pF
Filter Order 2nd
Rated Voltage 1.8V
ESD Protection Yes
Rated Current 0.2A
Number of Channels 6
Power Supplies 1.8
Approval Agency IEC
Base Part Number EMIF06
Number of Functions 6
Technology RC (Pi)
Packing Method TAPE AND REEL
Subcategory Data Line Filters
Capacitance 15μF
Applications Data Lines for Mobile Devices
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Type Low Pass
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e1
Size / Dimension 0.083Lx0.083W 2.10mmx2.10mm
Series IPAD?
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Package / Case 24-WFBGA, FCBGA
Mounting Type Surface Mount
