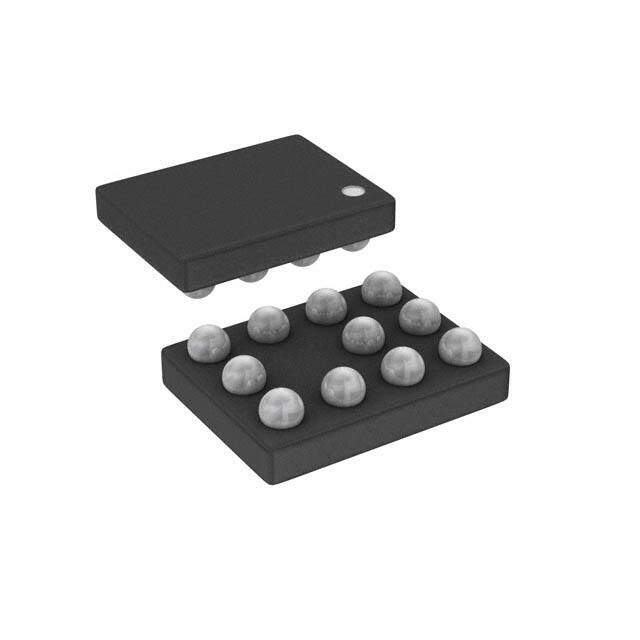

EMIF03-SIM04F3
RoHS
RoHS compliant
RoHS compliantPackage 11-WFBGA, FCBGA
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description
EMI Filter Circuits 3-line IPAD EMI ESD 10pF Vbr 1mA 50nA
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.261307
≥1 USD $0.261307
Inventory: 2812
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 11-WFBGA, FCBGA
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Series IPAD?
Size / Dimension 0.061Lx0.045W 1.54mmx1.14mm
Tolerance 20%
JESD-609 Code e1
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 11
Termination Flat
ECCN Code EAR99
Type Low Pass
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications Data Lines for Mobile Devices
HTS Code 8504.50.80.00
Capacitance 10μF
Subcategory Data Line Filters
Packing Method TAPE AND REEL
Technology RC (Pi)
Number of Functions 3
Depth 1.14mm
Base Part Number EMIF03
Approval Agency IEC
Physical Dimension L1.54XB1.14XH0.605 (mm)/L0.061XB0.045XH0.024 (inch)
Number of Channels 3
DC Resistance (DCR) (Max) 120Ohm
ESD Protection Yes
Filter Order 2nd
Values R = 47 Ω, 100 Ω, C = 10pF
Resistance - Channel (Ω) 47 100
Dimensions
Height 0.026 0.65mm
Length 1.54mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
