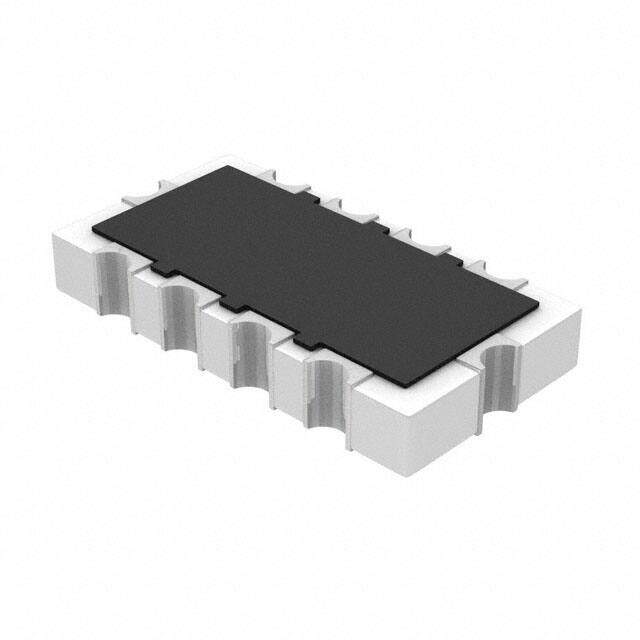

EZA-ST31AAAJ
RoHS
RoHS compliant
RoHS compliantPackage 1608 (4021 Metric), Concave
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description
RC NETWORK, SMD 1608, 100R, 22PF
PDF
/
Inventory: 9378
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 1608 (4021 Metric), Concave
Surface Mount YES
Terminal Shape WRAPAROUND
Technical
Operating Temperature -25°C~85°C
Packaging Tape & Reel (TR)
Published 2006
Series EZAST
Size / Dimension 0.157Lx0.083W 4.00mmx2.10mm
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
Type Low Pass
Terminal Finish Tin (Sn)
Applications Data Lines for Mobile Devices
Voltage - Rated 25V
Capacitance 0.000022μF
Packing Method TR, EMBOSSED, 7 INCH
Technology RC (Pi)
Number of Functions 1
Terminal Pitch 0.8mm
Rated Power Dissipation (P) 0.063W
Working Voltage 25V
Number of Channels 4
Rated (DC) Voltage (URdc) 25V
Number of Resistors 4
ESD Protection No
Resistance Tolerance 5%
Filter Order 4th
Values R = 100 Ω, C = 22pF
Number of Capacitors 4
Resistance - Channel (Ω) 100
Number of RC Elements 4
Capacitor Temperature Characteristics Code E
Capacitor Temperature Coefficient -55/+20%
Capacitance Negative Tolerance 20%
Capacitance Positive Tolerance 30%
Resistor Temperature Coefficient 200 ppm/°C
Dimensions
Height 0.033 0.85mm
Width 2.1mm
Compliance
RoHS Status RoHS Compliant
Alternative Model
