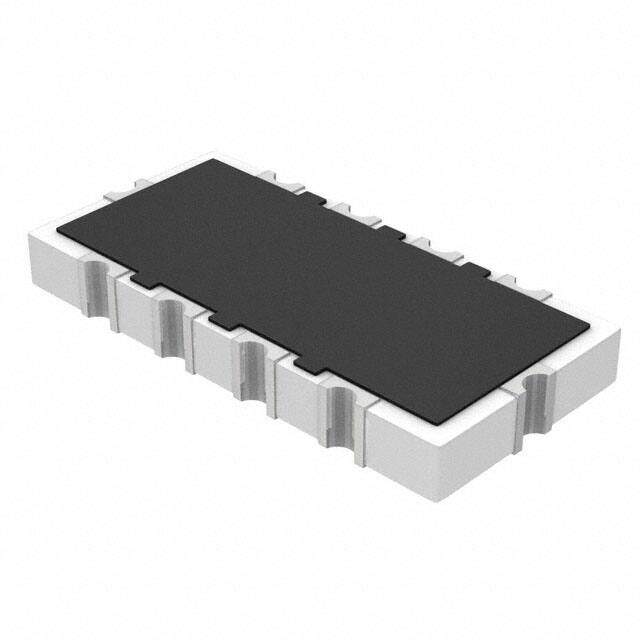

EZA-NT24AAAJ
RoHS
/
Package 2512 (6432 Metric), Concave
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description
FILTER RC(PI) 47 OHM/220PF SMD
PDF
/
Buying Options
Total Price: USD $2.22
Unit Price: USD $2.217488
≥1 USD $2.217488
≥200 USD $0.884895
≥500 USD $0.856011
≥1000 USD $0.841569
Inventory: 3294
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2512 (6432 Metric), Concave
Terminal Shape WRAPAROUND
Technical
Operating Temperature -25°C~85°C
Packaging Tape & Reel (TR)
Published 2007
Series EZANT
Size / Dimension 0.252Lx0.122W 6.40mmx3.10mm
Tolerance 30%
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 10
Termination SMD/SMT
Temperature Coefficient 200 ppm/°C
Type Low Pass
Resistance 47Ohm
Terminal Finish Tin (Sn)
Applications Data Lines for Mobile Devices
Voltage - Rated 50V
Capacitance 220pF
Packing Method TR, EMBOSSED, 7 INCH
Technology RC (Pi)
Number of Functions 1
Terminal Pitch 1.27mm
Depth 3.1mm
Case Code (Metric) 6432
Rated Power Dissipation (P) 0.063W
Case Code (Imperial) 2512
ESR (Equivalent Series Resistance) 47Ohm
Working Voltage 25V
Number of Channels 4
Rated (DC) Voltage (URdc) 50V
Number of Resistors 4
ESD Protection No
Filter Order 1st
Values R = 47 Ω, C = 220pF
Resistance - Channel (Ω) 47
Number of RC Elements 4
Capacitor Temperature Characteristics Code E
Dimensions
Height 0.039 1.00mm
Thickness 800μm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
Alternative Model
