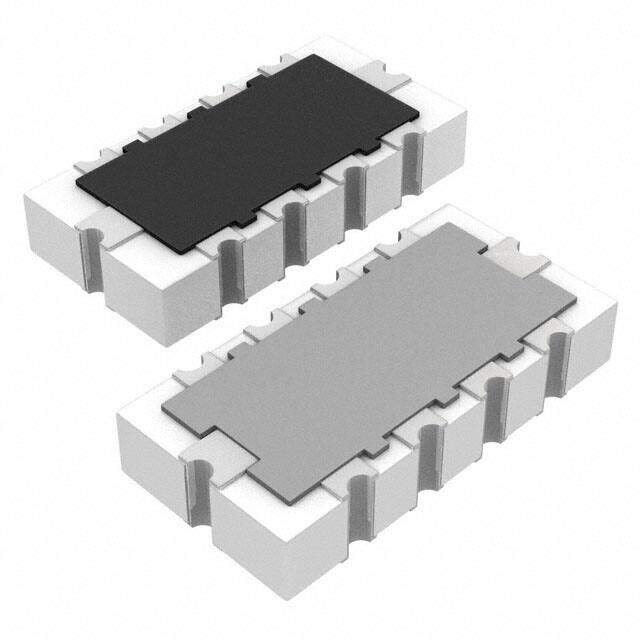

EZA-DT43AAAJ
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3216 Metric), Concave, Long Side Terminals
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description
FILTER RC(PI) 220 OHM/100PF SMD
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4028
≥1 USD $0.4028
≥10 USD $0.3306
≥100 USD $0.32015
≥500 USD $0.31065
≥1000 USD $0.3002
Inventory: 350006
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 1.6mm
Length 3.2mm
Height 0.033 0.85mm
Technical
Resistor Temperature Coefficient 200 ppm/°C
Capacitance Positive Tolerance 30%
Capacitance Negative Tolerance 20%
Capacitor Temperature Coefficient -55/+20%
Capacitor Temperature Characteristics Code E
Number of RC Elements 4
Resistance - Channel (Ω) 220
Number of Capacitors 4
Values R = 220 Ω, C = 100pF
Filter Order 1st
Resistance Tolerance 5%
ESD Protection No
Number of Resistors 4
Rated (DC) Voltage (URdc) 12V
Number of Channels 4
Working Voltage 25V
Terminal Pitch 0.635mm
Number of Functions 1
Technology RC (Pi)
Packing Method TR, PUNCHED, 7 INCH
Capacitance 0.0001μF
Voltage - Rated 12V
Applications Data Lines for Mobile Devices
Terminal Finish Tin (Sn)
Type Low Pass
Number of Terminations 10
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Series EZADT
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -25°C~85°C
Physical
Terminal Shape WRAPAROUND
Surface Mount YES
Package / Case 1206 (3216 Metric), Concave, Long Side Terminals
Mounting Type Surface Mount
