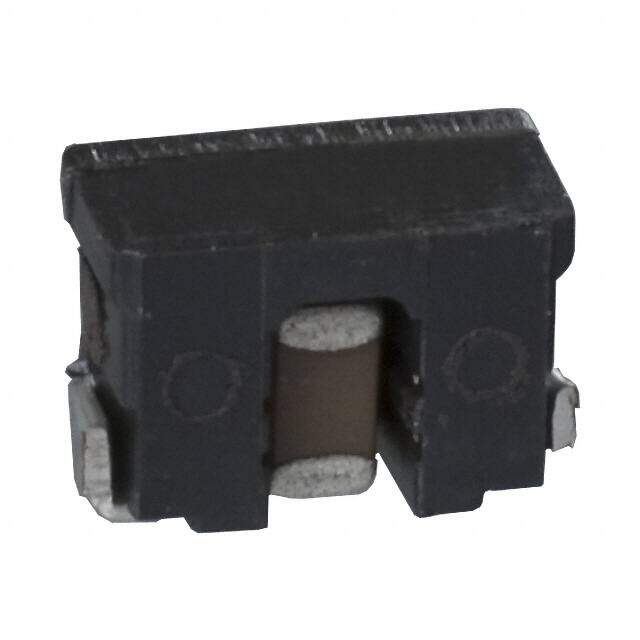

ELK-E221FA
RoHS
RoHS compliant
RoHS compliantPackage 1207 (3218 Metric), 3 PC Pad
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description
FILTER, EMI, 25MHZ, 220PF, 50V, 2A
PDF
/
Buying Options
Total Price: USD $16.11
Unit Price: USD $16.10915
≥1 USD $16.10915
≥10 USD $13.2183
≥100 USD $12.80505
≥500 USD $12.3918
≥1000 USD $11.97855
Inventory: 5149
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Length 3.2mm
Height 0.087 2.20mm
Technical
Center / Cutoff Frequency 25MHz Cutoff
Values C = 220pF
Filter Order 3rd
ESD Protection No
DC Resistance (DCR) (Max) 0.02Ohm
Max Voltage Rating (DC) 50V
Max DC Current 2A
Max Current Rating 2A
Number of Channels 1
Case Code (Imperial) 1207
Case Code (Metric) 3218
Voltage - Rated AC 50V
Frequency 25MHz
Current Rating 2A
Depth 1.8mm
Number of Functions 1
Technology LC (T-Type)
Packing Method TAPE AND REEL
Voltage - Rated DC 50V
Capacitance 220pF
HTS Code 8504.50.80.00
Applications Data Lines for Mobile Devices
Terminal Finish Tin/Copper (Sn/Cu)
Type Low Pass
ECCN Code EAR99
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Size / Dimension 0.126Lx0.071W 3.20mmx1.80mm
Series ELKE
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Package / Case 1207 (3218 Metric), 3 PC Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Copper, Tin
Supply Chain
Factory Lead Time 9 Weeks
