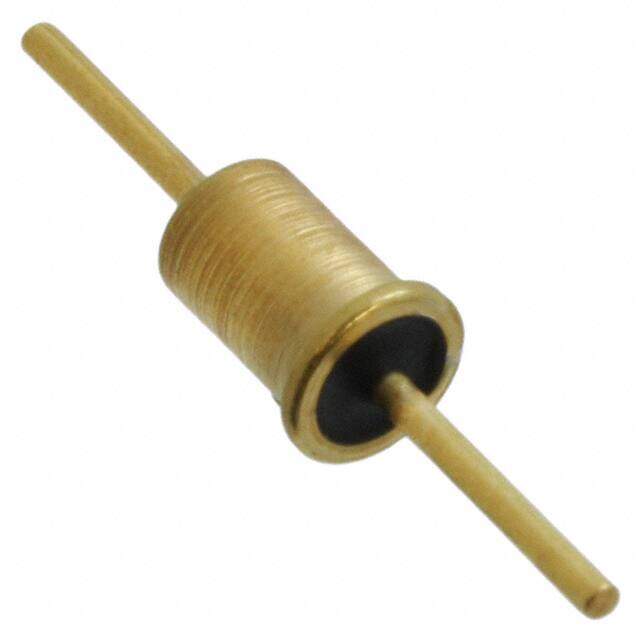

SCI-9980-103 image
Favorite
SCI-9980-103 image
Favorite

SCI-9980-103

API Technologies Corp
RoHS
/
Package Axial, Eyelet
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description EMI Feedthrough Filters MINI L CRCTSOLDER 10DC 100V 10K pF
PDF
/
Inventory: 962
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Height 5.08mm
Diameter 3.96mm

Technical

Resistance - Channel (Ω) 0.01
Values C = 10000pF
Filter Order 2nd
Insertion Loss (Max) 65 dB
Attenuation Value 48dB @ 100MHz
ESD Protection No
Max DC Current 10A
DC Resistance (DCR) 10mOhm
Number of Channels 1
Number of Functions 1
Technology LC
Packing Method BAG
Capacitance 10nF
HTS Code 8504.50.80.00
Additional Feature L-TYPE CIRCUIT
Voltage - Rated 200V
Applications Microwave
Terminal Finish GOLD
Type Low Pass
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
JESD-609 Code e4
Size / Dimension 0.156Diax0.200L 3.96mmx5.08mm
Series 9900
Published 2014
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Package / Case Axial, Eyelet
Mounting Type Custom
Mount Through Hole
