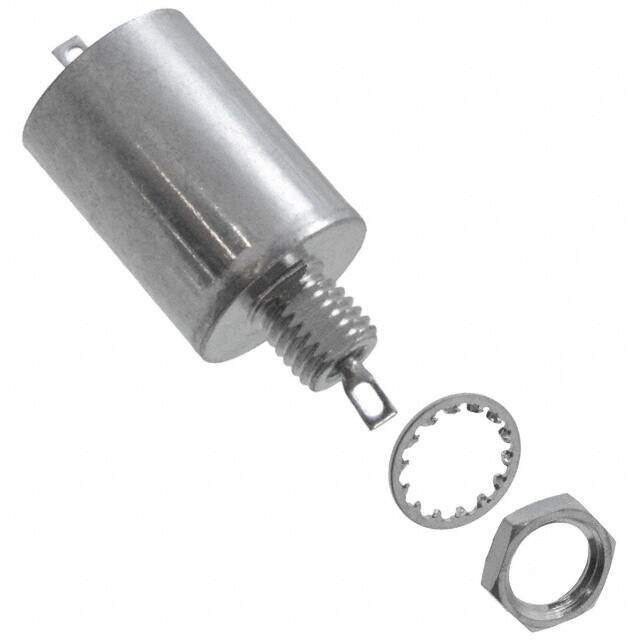

SCI-6130-009 image
Favorite
SCI-6130-009 image
Favorite

SCI-6130-009

API Technologies Corp
RoHS
/
Package Axial, Bushing - 2 Solder Eyelets
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description FILTER LC(PI) 5.2UF CHASSIS
PDF
/
Inventory: 7399
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Dimensions

Height 30.353mm

Technical

Resistance - Channel (Ω) 0.001
Values C = 5.2μF
Filter Order 3rd
Insertion Loss (Max) 70 dB
Attenuation Value 70dB @ 10MHz ~ 1GHz
ESD Protection No
Current 20A
Number of Channels 1
Reach Compliance Code compliant
Number of Functions 1
Technology LC (Pi)
Capacitance 5200000μF
HTS Code 8504.50.80.00
Additional Feature PI-TYPE CIRCUIT
Voltage - Rated 100V
Applications General Purpose
Type Low Pass
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Size / Dimension 0.687Diax1.269L 17.45mmx32.23mm
Published 2014
Packaging Tray
Operating Temperature -55°C~125°C

Physical

Package / Case Axial, Bushing - 2 Solder Eyelets
Mounting Type Chassis Mount
