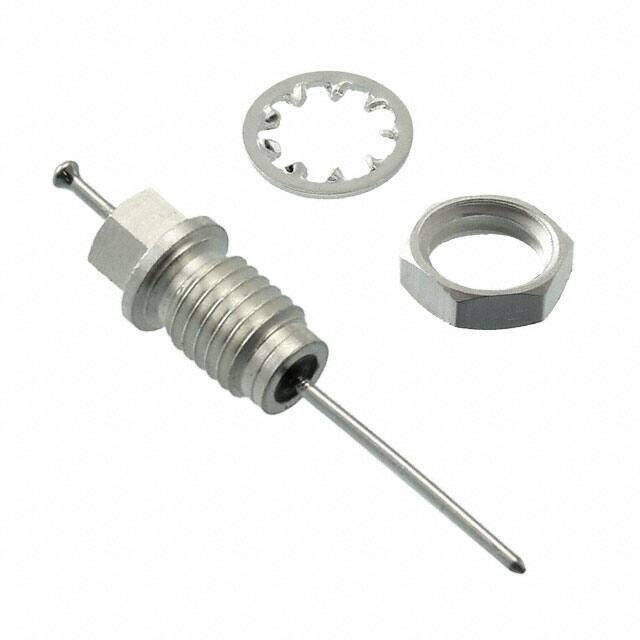

SCI-3313-000 image
Favorite
SCI-3313-000 image
Favorite

SCI-3313-000

API Technologies Corp
RoHS
/
Package Axial, Bushing, 1 Turret Lead
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description RESIN SEALED BOLT-IN FILTERS
PDF
/
Inventory: 7492
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Diameter 5.54mm

Technical

Resistance - Channel (Ω) 0.01
Values C = 0.1μF
Filter Order 3rd
Insertion Loss (Max) 70 dB
Attenuation Value 70dB @ 100MHz ~ 10GHz
ESD Protection No
Circuit Type Filter
Max DC Current 10A
Number of Channels 1
Number of Functions 1
Technology LC (Pi)
Capacitance 100nF
HTS Code 8504.50.80.00
Additional Feature PI-TYPE CIRCUIT
Voltage - Rated 100V
Applications Microwave
Type Low Pass
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Size / Dimension 0.187Diax0.468L 4.75mmx11.89mm
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Package / Case Axial, Bushing, 1 Turret Lead
Mount Bolt, Through Hole

Supply Chain

Factory Lead Time 10 Weeks
