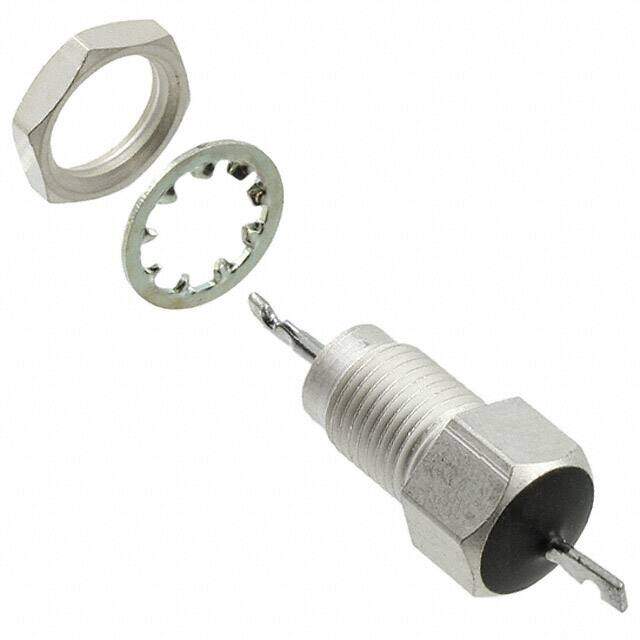

1202-005 image
Favorite
1202-005 image
Favorite
RoHS
/
Package Axial, Bushing - 2 Notched Leads
Category Filters / EMI/RFI Filters (LC, RC Networks)
Description EMI Feedthrough Filters 25A 2000pF 5/16-32
PDF
/
Inventory: 4236
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status Non-RoHS Compliant

Dimensions

Diameter 9.53mm

Technical

Resistance - Channel (Ω) 0.01
Values C = 2000pF
Filter Order 3rd
Insertion Loss (Max) 70 dB
Attenuation Value 50dB @ 100MHz
ESD Protection No
Circuit Type Filter
Max DC Current 25A
DC Resistance (DCR) 10mOhm
Test Frequency 100MHz
Number of Channels 1
Current Rating 25A
Number of Functions 1
Technology LC (Pi)
Voltage - Rated DC 700V
Capacitance 2nF
HTS Code 8504.50.80.00
Additional Feature PI-TYPE CIRCUIT
Applications General Purpose
Type Low Pass
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Size / Dimension 0.375Diax0.687L 9.53mmx17.45mm
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Package / Case Axial, Bushing - 2 Notched Leads
Mounting Type Chassis Mount
Mount Through Hole
