5CSEMA6U23C6N
RoHS
RoHS compliant

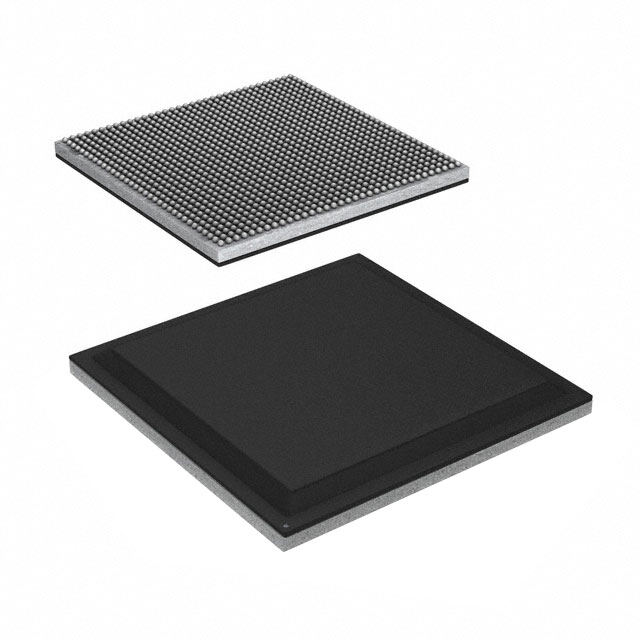

RoHS compliantPackage 672-FBGA
Category Integrated Circuits (ICs) / Embedded - System On Chip (SoC)
Description
BALL BOTTOM MCU FPGA Active System On Chip (SOC) IC 0C~85C TJ 64KB 925MHz 1.11.2/3.32.5V
PDF
/
Inventory: 7523
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Package / Case 672-FBGA
Surface Mount YES
Technical
Operating Temperature 0°C~85°C TJ
Packaging Tray
Published 2018
Series Cyclone? V SE
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 672
Subcategory Field Programmable Gate Arrays
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Supply Voltage 1.1V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number 5CSEMA6
JESD-30 Code S-PBGA-B672
Number of Outputs 145
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 1.13V
Power Supplies 1.11.2/3.32.5V
Supply Voltage-Min (Vsup) 1.07V
Number of I/O MCU - 181, FPGA - 145
Speed 925MHz
RAM Size 64KB
Core Processor Dual ARM? Cortex?-A9 MPCore? with CoreSight?
Peripherals DMA, POR, WDT
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Architecture MCU, FPGA
Number of Inputs 145
Programmable Logic Type FIELD PROGRAMMABLE GATE ARRAY
Primary Attributes FPGA - 110K Logic Elements
Number of Logic Cells 110000
Dimensions
Height Seated (Max) 1.85mm
Length 23mm
Width 23mm
Compliance
RoHS Status RoHS Compliant
