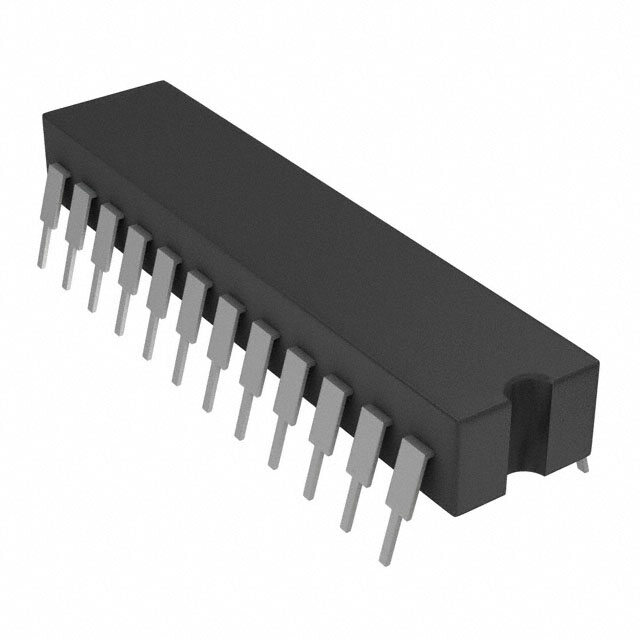

PAL22V10Z-25CJTL
RoHS
/
Package CDIP
Category Integrated Circuits (ICs) / Embedded - PLDs (Programmable Logic Device)
Description
IC, PAL, 21NS, DIP-24 - More Details
PDF
/
Buying Options
Total Price: USD $124.83
Unit Price: USD $124.833931
≥1 USD $124.833931
≥10 USD $117.767859
≥100 USD $111.101757
≥500 USD $104.812975
≥1000 USD $98.880167
Inventory: 1636
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Thickness 4.7mm
Width 6.92mm
Length 32mm
Height 5.08mm
Technical
Number of Product Terms 132
In-System Programmable NO
Number of Dedicated Inputs 11
JTAG BST NO
Number of Macro Cells 10
Output Function MACROCELL
Number of Gates 300
Programmable Logic Type UV PLD
Architecture PAL-TYPE
Turn On Delay Time 40 ns
Propagation Delay 40 ns
Number of I/O 10
Min Supply Voltage 4.75V
Max Supply Voltage 5.25V
Temperature Grade COMMERCIAL EXTENDED
Power Supplies 5V
Operating Supply Voltage 5V
Number of Outputs 10
Pin Count 24
Frequency 66MHz
Terminal Pitch 2.54mm
Supply Voltage 5V
Terminal Position DUAL
Technology CMOS
Subcategory Programmable Logic Devices
HTS Code 8542.39.00.01
Min Operating Temperature 0°C
Max Operating Temperature 75°C
Number of Terminations 24
Packaging Rail/Tube
Physical
Number of Pins 24
Package / Case CDIP
Mount Through Hole
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
