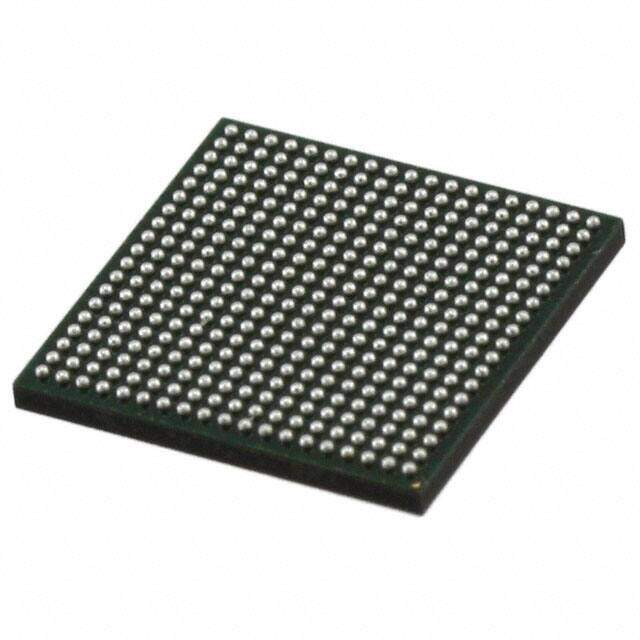

OMAPL138BZCE3
RoHS
RoHS compliant
RoHS compliantPackage 361-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
IC MPU OMAP-L1X 375MHZ 361NFBGA
PDF
/
Buying Options
Total Price: USD $156.86
Unit Price: USD $156.861015
≥1 USD $156.861015
≥10 USD $147.98209
≥100 USD $139.605746
≥500 USD $131.703532
≥1000 USD $124.248616
Inventory: 1556
Minimum: 1
-
+
Technical Details
Physical
Contact Plating Copper, Silver, Tin
Mount Surface Mount
Package / Case 361-LFBGA
Number of Pins 361
Weight 789.392471mg
Technical
Operating Temperature 0°C~90°C TJ
Packaging Tray
Series OMAP-L1x
JESD-609 Code e1
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 361
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Other uPs/uCs/Peripheral ICs
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 1V
Terminal Pitch 0.65mm
Frequency 456MHz
Base Part Number OMAPL138
Pin Count 361
Operating Supply Voltage 1.2V
Voltage 1.35V
Interface I2C, Parallel, SPI, USB
Max Supply Voltage 1.32V
Min Supply Voltage 1.14V
Number of I/O 144
RAM Size 8kB
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, OTHER
Number of Bits 32
Core Processor ARM926EJ-S
Data Bus Width 32b
Number of Timers/Counters 3
Core Architecture ARM
Boundary Scan YES
Low Power Mode YES
Format FLOATING POINT
Voltage - I/O 1.8V 3.3V
Ethernet 10/100Mbps (1)
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration No
RAM Controllers SDRAM
USB USB 1.1 + PHY (1), USB 2.0 + PHY (1)
Additional Interfaces HPI, I2C, McASP, McBSP, MMC/SD, SPI, UART
Co-Processors/DSP Signal Processing; C674x, System Control; CP15
Number of Cores 2
Barrel Shifter NO
Internal Bus Architecture MULTIPLE
Security Features Boot Security, Cryptography
Display & Interface Controllers LCD
SATA SATA 3Gbps (1)
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
