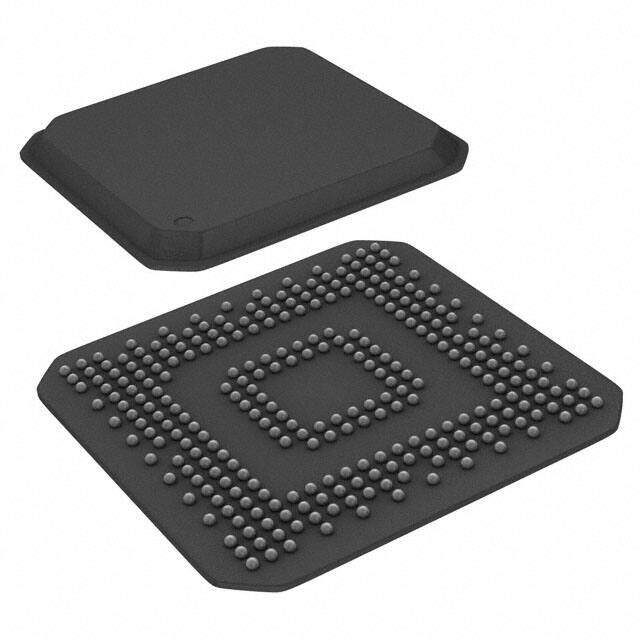

OMAP5910JZZG2
RoHS
RoHS compliant
RoHS compliantPackage 289-TFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
IC MPU OMAP-59XX 150MHZ 289BGA
PDF
/
Buying Options
Total Price: USD $17.95
Unit Price: USD $17.94566
≥1 USD $17.94566
≥10 USD $16.929865
≥100 USD $15.971577
≥500 USD $15.067521
≥1000 USD $14.214641
Inventory: 1165
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 12mm
Height Seated (Max) 1.2mm
Technical
Number of DMA Channels 6
Display & Interface Controllers Keypad, LCD
Internal Bus Architecture MULTIPLE
Barrel Shifter NO
ROM Programmability MROM
Co-Processors/DSP Signal Processing; C55x, System Control; CP15
Additional Interfaces 1-Wire/HDQ, AC97, I2C, I2S, IrDA, McBSP, MCSI, MICROWIRE, MMC/SD, SPI, UART
USB USB 2.0 (2)
RAM Controllers SDRAM
Graphics Acceleration No
Number of Cores/Bus Width 1 Core 32-Bit
Voltage - I/O 1.8V 2.75V 3.3V
Integrated Cache YES
Format FIXED POINT
Low Power Mode YES
Boundary Scan YES
On Chip Program ROM Width 16
Core Architecture ARM
Address Bus Width 25
Number of Timers/Counters 6
Data Bus Width 32b
Bit Size 16
Core Processor ARM9TDMI
uPs/uCs/Peripheral ICs Type DIGITAL SIGNAL PROCESSOR, MIXED
Memory Type FLASH
RAM Size 160kB
Nominal Supply Current 170mA
Memory Size 32kB
Interface I2C, MMC, SDIO, UART, USB
Voltage 1.675V
Operating Supply Voltage 1.6V
Pin Count 289
Base Part Number OMAP5910
Frequency 150MHz
Terminal Pitch 0.5mm
Supply Voltage 1.6V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Digital Signal Processors
HTS Code 8542.31.00.01
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 289
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
JESD-609 Code e1
Series OMAP-59xx
Packaging Tray
Operating Temperature -40°C~85°C TC
Physical
Weight 274.791928mg
Number of Pins 289
Package / Case 289-TFBGA
Mount Surface Mount
Contact Plating Copper, Silver, Tin
Supply Chain
Factory Lead Time 12 Weeks
