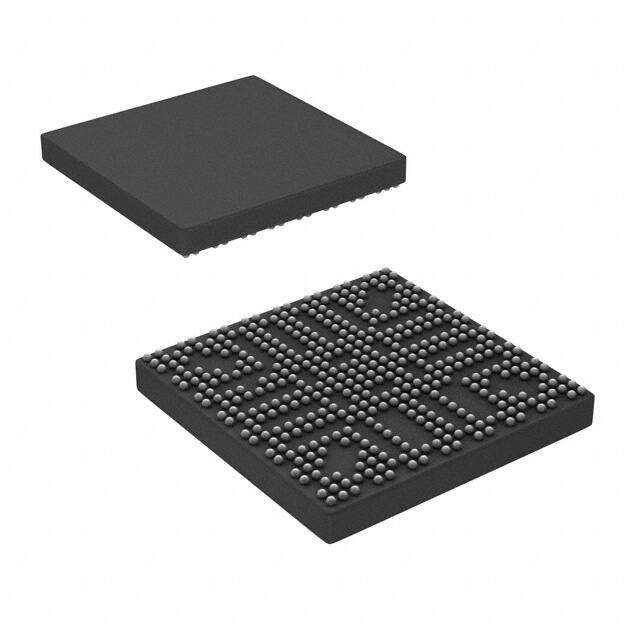

OMAP3530ECUSA
RoHS
RoHS compliant
RoHS compliantPackage 423-LFBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
Processors - Application Specialized Applications Proc
PDF
/
Buying Options
Total Price: USD $63.71
Unit Price: USD $63.70985
≥1 USD $63.70985
≥10 USD $52.27565
≥100 USD $50.64165
≥500 USD $49.00765
≥1000 USD $47.3746
Inventory: 728
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 4 days ago)
Physical
Contact Plating Copper, Silver, Tin
Mount Surface Mount
Package / Case 423-LFBGA, FCBGA
Number of Pins 423
Technical
Operating Temperature -40°C~105°C TJ
Packaging Tray
Series OMAP-35xx
JESD-609 Code e1
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 423
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Graphics Processors
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.65mm
Frequency 600MHz
Base Part Number OMAP3530
Pin Count 423
Voltage 1.35V
Interface I2C, SPI, UART, USB
Max Supply Voltage 1.35V
Min Supply Voltage 985mV
Memory Size 112kB
RAM Size 64kB
Memory Type L2 Cache, ROM, SRAM
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Core Processor ARM? Cortex?-A8
Data Bus Width 32b
Core Architecture ARM
Voltage - I/O 1.8V 3.0V
Number of UART Channels 3
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration Yes
RAM Controllers LPDDR
USB USB 1.x (3), USB 2.0 (1)
Additional Interfaces HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART
Co-Processors/DSP Signal Processing; C64x+, Multimedia; NEON? SIMD
Number of Cores 1
Display & Interface Controllers LCD
Dimensions
Height 1.4mm
Length 16mm
Width 16mm
Thickness 960μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
