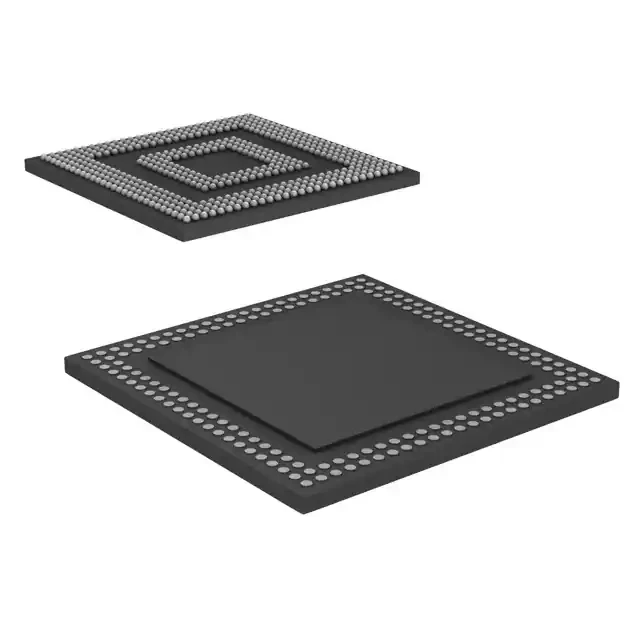

OMAP3530ECBB72
RoHS
RoHS compliant
RoHS compliantPackage 515-VFBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
Processors - Application Specialized Applications Proc
PDF
/
Buying Options
Total Price: USD $83.71
Unit Price: USD $83.7102
≥1 USD $83.7102
≥10 USD $81.09485
≥100 USD $78.47855
≥500 USD $75.8632
≥1000 USD $68.01525
Inventory: 1096
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Mount Surface Mount
Package / Case 515-VFBGA, FCBGA
Number of Pins 515
Technical
Operating Temperature 0°C~90°C TJ
Packaging Tray
Series OMAP-35xx
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 515
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Graphics Processors
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Terminal Pitch 0.4mm
Frequency 720MHz
Base Part Number OMAP3530
Pin Count 515
Voltage 1.35V
Interface I2C, Serial, UART, USB
Max Supply Voltage 1.35V
Min Supply Voltage 985mV
Memory Size 112kB
Number of I/O 188
RAM Size 64kB
Memory Type L2 Cache, ROM, SRAM
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Core Processor ARM? Cortex?-A8
Data Bus Width 32b
Core Architecture ARM
Voltage - I/O 1.8V 3.0V
Number of UART Channels 3
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration Yes
RAM Controllers LPDDR
USB USB 1.x (3), USB 2.0 (1)
Additional Interfaces HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART
Co-Processors/DSP Signal Processing; C64x+, Multimedia; NEON? SIMD
Number of Cores 1
Display & Interface Controllers LCD
Dimensions
Height 900μm
Length 12mm
Width 12mm
Thickness 610μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
