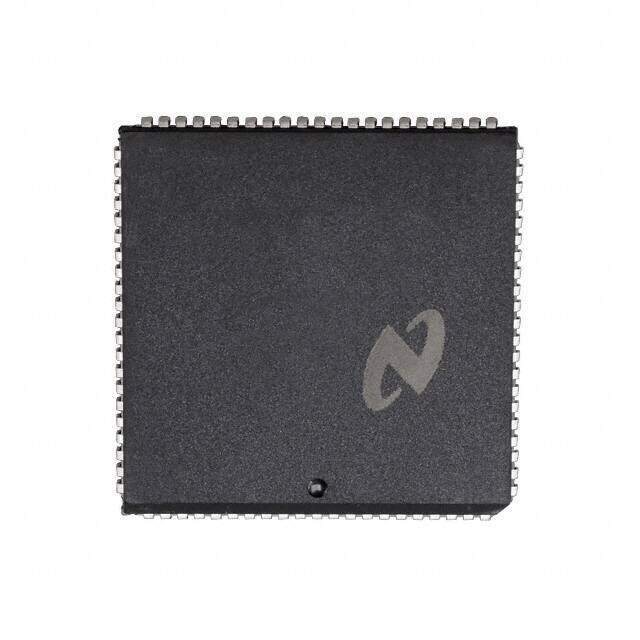

DP8344BV
RoHS
/
Package 84-LCC (J-Lead)
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
FIXED POINT MICROPROCESSOR RISC 1Core 8-Bit J BEND IC Microprocessor 0C~70C TA 71mA 29.21mm 5V
PDF
/
Buying Options
Total Price: USD $33.26
Unit Price: USD $33.264
≥1 USD $33.264
Inventory: 7810
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Package / Case 84-LCC (J-Lead)
Technical
Operating Temperature 0°C~70°C TA
Packaging Tube
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 84
Terminal Finish Tin/Lead (Sn85Pb15)
Subcategory Other Microprocessor ICs
Technology CMOS
Terminal Position QUAD
Terminal Form J BEND
Peak Reflow Temperature (Cel) 220
Supply Voltage 5V
Terminal Pitch 1.27mm
Frequency 20MHz
Base Part Number DP8344
JESD-30 Code S-PQCC-J84
Power Supplies 5V
Voltage 5.5V
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Supply Current-Max 71mA
Bit Size 8
Address Bus Width 16
Boundary Scan NO
Low Power Mode NO
External Data Bus Width 16
Format FIXED POINT
Integrated Cache NO
RAM (words) 0
Voltage - I/O 5.0V
Number of Cores/Bus Width 1 Core 8-Bit
Graphics Acceleration No
Number of Serial I/Os 1
Number of External Interrupts 2
Dimensions
Height Seated (Max) 4.57mm
Length 29.21mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
