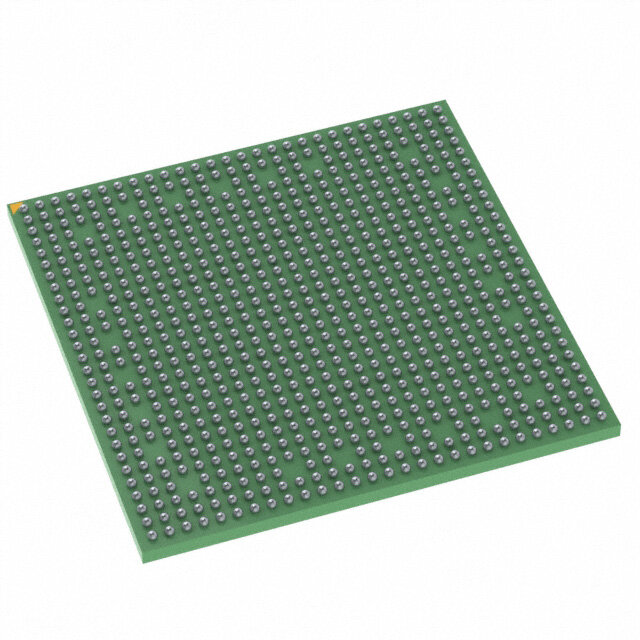

AM5749ABZXA
RoHS
RoHS compliant
RoHS compliantPackage 760-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
ARM CORTEX MCU
PDF
/
Buying Options
Total Price: USD $63.22
Unit Price: USD $63.2192
≥1 USD $63.2192
Inventory: 148
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 23mm
Height Seated (Max) 1.63mm
Technical
SATA SATA 3Gbps (1)
Display & Interface Controllers HDMI, LCD, Video
Security Features ARM TZ, Boot Security, Cryptography, Secure JTAG, Secure RTC
Co-Processors/DSP ARM? Cortex?-M4, C66x
Additional Interfaces CAN, HDQ/1-Wire, I2C, McASP, MMC/SD/SDIO, QSPI, SPI, SD/SDIO, UART
USB USB 2.0 (2), USB 3.0 (2)
RAM Controllers DDR3, DDR3L
Graphics Acceleration Yes
Number of Cores/Bus Width 1 Core 32-Bit
Ethernet GbE (2)
Voltage - I/O 1.35V 1.5V 1.8V 3.3V
Integrated Cache YES
Format FIXED POINT
External Data Bus Width 32
Low Power Mode YES
Boundary Scan YES
Address Bus Width 16
Clock Frequency 38.4MHz
Core Processor ARM? Cortex?-A15
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Speed 1.5GHz
Supply Voltage-Min (Vsup) 1.11V
Supply Voltage-Max (Vsup) 1.2V
JESD-30 Code S-PBGA-B760
Base Part Number AM5749
Terminal Pitch 0.8mm
Supply Voltage 1.15V
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 760
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series Sitara?
Operating Temperature -40°C~105°C TJ
Physical
Surface Mount YES
Package / Case 760-LFBGA
Supply Chain
Factory Lead Time 6 Weeks
