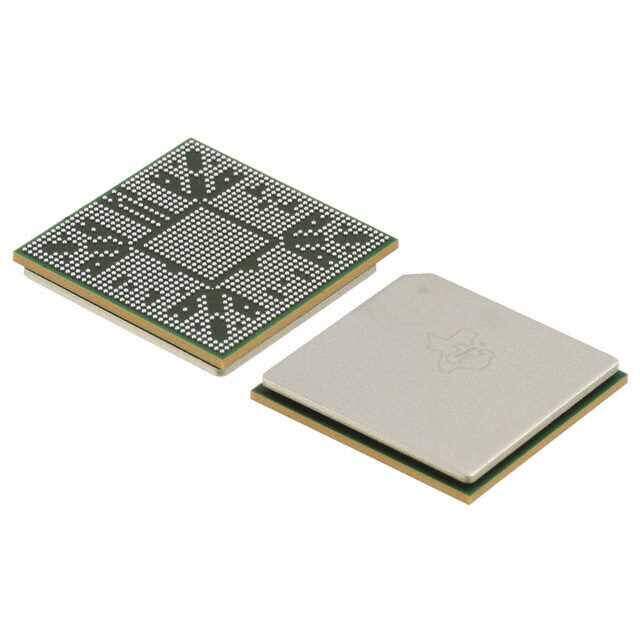

AM3892CCYG120
RoHS
RoHS compliant
RoHS compliantPackage 1031-BFBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
MPU Sitara RISC 32-Bit 1200MHz 1.5V/1.8V/3.3V 1031-Pin FC-BGA
PDF
/
Inventory: 9350
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status ACTIVE (Last Updated: 1 week ago)
Physical
Contact Plating Copper, Silver, Tin
Package / Case 1031-BFBGA, FCBGA
Surface Mount YES
Number of Pins 1031
Technical
Operating Temperature 0°C~95°C TJ
Packaging Tray
Series Sitara?
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Microprocessors
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 245
Supply Voltage 1V
Terminal Pitch 0.65mm
Frequency 1.2GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number AM3892
Qualification Status Not Qualified
Operating Supply Voltage 1V
Power Supplies 1V
Interface Ethernet, I2C, SPI, UART, USB
Memory Size 48kB
RAM Size 64kB
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Core Processor ARM? Cortex?-A8
Bit Size 32
Data Bus Width 32b
Core Architecture ARM
Boundary Scan YES
Low Power Mode YES
Format FLOATING POINT
Integrated Cache YES
Voltage - I/O 1.8V 3.3V
Number of UART Channels 3
Ethernet 10/100/1000Mbps (2)
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration Yes
RAM Controllers DDR2, DDR3
USB USB 2.0 + PHY (2)
Additional Interfaces I2C, McASP, McBSP, SPI, SD/SDIO, UART
Co-Processors/DSP Multimedia; NEON? SIMD
Number of Cores 1
Display & Interface Controllers HDMI, HDVPSS
SATA SATA 3Gbps (1)
Dimensions
Height 3.31mm
Length 25mm
Width 25mm
Thickness 2.81mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Alternative Model
