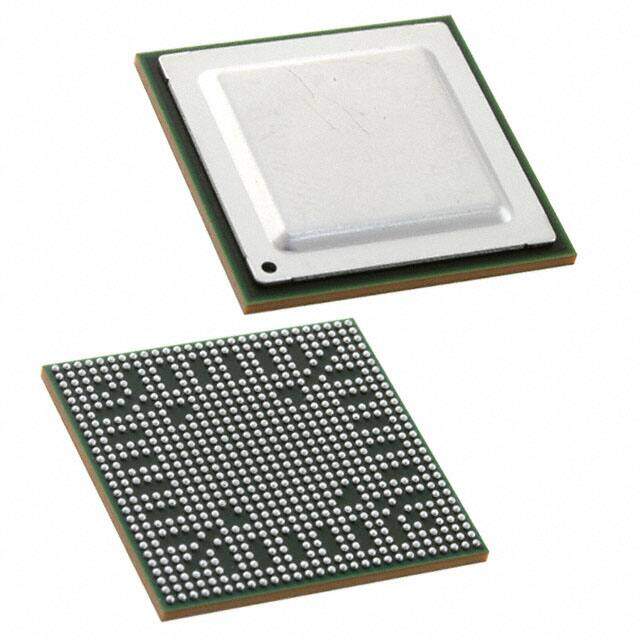

AM3871CCYE80
RoHS
/
Package 684-BFBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
MPU AM387x RISC 32-Bit 45nm 800MHz 1.5V/1.8V/3.3V 684-Pin FCBGA
PDF
/
Inventory: 3022
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Co-Processors/DSP Multimedia; NEON? SIMD
Number of Cores 1
Display & Interface Controllers HDMI, HDVPSS
SATA SATA 3Gbps (1)
Additional Interfaces CAN, I2C, McASP, McBSP, SPI, MMC/SD/SDIO, UART
USB USB 2.0 (2)
RAM Controllers DDR2, DDR3
Graphics Acceleration Yes
Number of Cores/Bus Width 1 Core 32-Bit
Ethernet 10/100/1000Mbps (1)
Number of UART Channels 6
Voltage - I/O 1.8V 3.3V
Integrated Cache YES
Format FLOATING POINT
Low Power Mode YES
Boundary Scan YES
Core Architecture ARM
Data Bus Width 32b
Bit Size 32
Core Processor ARM? Cortex?-A8
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Memory Type L2 Cache, RAM, ROM
RAM Size 64kB
Number of I/O 128
Interface I2C, PCIe, SPI, UART, USB
Voltage 1.42V
Operating Supply Voltage 1.1V
Pin Count 684
Base Part Number AM3871
Frequency 800MHz
Terminal Pitch 0.8mm
Supply Voltage 1.35V
Peak Reflow Temperature (Cel) 250
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microprocessors
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Number of Terminations 684
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series Sitara?
Packaging Tray
Operating Temperature 0°C~90°C TJ
Dimensions
Height 3.06mm
Length 23mm
Width 23mm
Thickness 2.5mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Lead Free
Physical
Number of Pins 684
Surface Mount YES
Package / Case 684-BFBGA, FCBGA
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Factory Lead Time 12 Weeks
