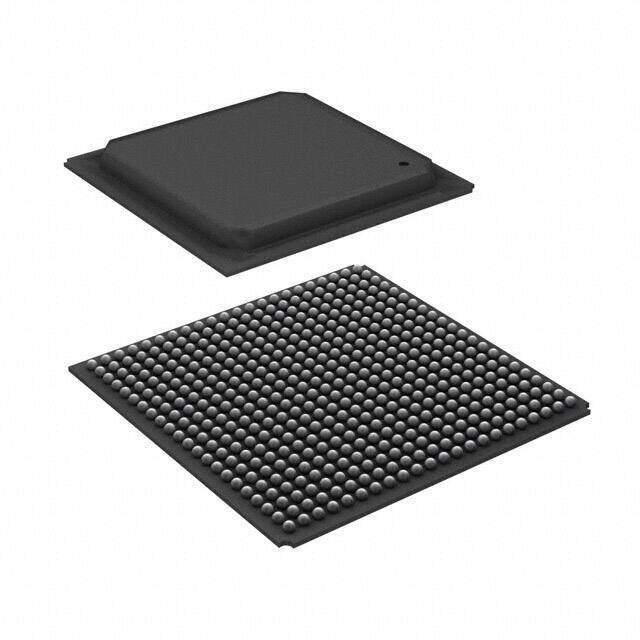

AM3517AZER
RoHS
RoHS compliant
RoHS compliantPackage 484-BBGA Exposed Pad
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
IC MPU SITARA 600MHZ 484BGA
PDF
/
Buying Options
Total Price: USD $134.24
Unit Price: USD $134.23975
≥1 USD $134.23975
≥10 USD $129.76525
≥100 USD $116.3408
Inventory: 909
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Thickness 1.78mm
Width 23mm
Length 23mm
Height 2.48mm
Technical
Display & Interface Controllers LCD
Co-Processors/DSP Multimedia; NEON? SIMD
Additional Interfaces CAN, HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART
USB USB 2.0 (3), USB 2.0 + PHY (1)
RAM Controllers LPDDR, DDR2
Graphics Acceleration Yes
Number of Cores/Bus Width 1 Core 32-Bit
Ethernet 10/100Mbps (1)
Number of UART Channels 4
Voltage - I/O 1.8V 3.3V
RAM (words) 65536
Integrated Cache YES
Format FLOATING POINT
Low Power Mode YES
Boundary Scan YES
Core Architecture ARM
Number of Timers/Counters 14
Data Bus Width 32b
Bit Size 16
Supply Current-Max 1500mA
Core Processor ARM? Cortex?-A8
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
RAM Size 64kB
Min Supply Voltage 1.152V
Max Supply Voltage 1.248V
Interface CAN, I2C, SPI, UART, USB
Voltage 1.248V
Power Supplies 1.21.83.3V
Operating Supply Voltage 1.2V
Pin Count 484
Base Part Number AM3517
Frequency 600MHz
Terminal Pitch 1mm
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microprocessors
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 3A991.A.2
Number of Terminations 484
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series Sitara?
Packaging Tray
Operating Temperature 0°C~90°C TJ
Physical
Number of Pins 484
Surface Mount YES
Package / Case 484-BBGA Exposed Pad
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
