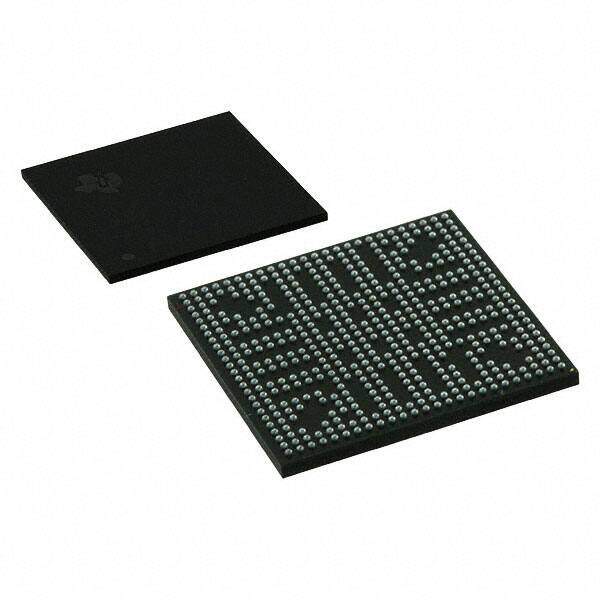

AM3517AZCN image
Favorite
AM3517AZCN image
Favorite

AM3517AZCN

Texas Instruments
RoHS
RoHS RoHS compliant
Package 491-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description TEXAS INSTRUMENTS AM3517AZCN SITARA,ARM,CORTEX-A8,491NFBGA
PDF
/
Buying Options
Total Price: USD $31.6
Unit Price: USD $31.6
≥1 USD $31.6
≥10 USD $27.2
≥90 USD $23.6
Inventory: 198
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)

Physical

Contact Plating Copper, Silver, Tin
Package / Case 491-LFBGA
Surface Mount YES
Number of Pins 491

Technical

Operating Temperature 0°C~90°C TJ
Packaging Tray
Series Sitara?
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 491
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Subcategory Microprocessors
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.2V
Terminal Pitch 0.65mm
Frequency 600MHz
Base Part Number AM3517
Pin Count 491
Operating Supply Voltage 1.2V
Voltage 1.248V
Interface I2C, USB
Max Supply Voltage 1.248V
Min Supply Voltage 1.152V
Memory Size 1GB
Number of I/O 186
RAM Size 64kB
Memory Type L2 Cache, RAM, ROM
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Core Processor ARM? Cortex?-A8
Bit Size 16
Data Bus Width 32b
Core Architecture ARM
Boundary Scan YES
Low Power Mode YES
Format FLOATING POINT
Integrated Cache YES
RAM (words) 65536
Voltage - I/O 1.8V 3.3V
Number of UART Channels 4
Ethernet 10/100Mbps (1)
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration Yes
RAM Controllers LPDDR, DDR2
USB USB 2.0 (3), USB 2.0 + PHY (1)
Additional Interfaces CAN, HDQ/1-Wire, I2C, McBSP, McSPI, MMC/SD/SDIO, UART
Co-Processors/DSP Multimedia; NEON? SIMD
Number of Cores 1
Display & Interface Controllers LCD

Dimensions

Height 1.3mm
Length 17mm
Width 17mm
Thickness 900μm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
