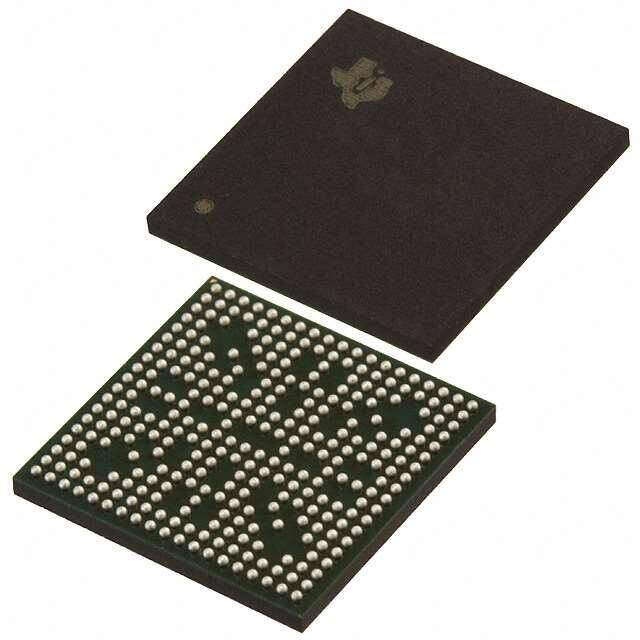

AM3351BZCE30
RoHS
RoHS compliant
RoHS compliantPackage 289-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
SITARA PROCESSOR
PDF
/
Buying Options
Total Price: USD $10.9
Unit Price: USD $10.9032
≥1 USD $10.9032
≥10 USD $10.01968
≥100 USD $9.60432
≥500 USD $8.462133
≥1000 USD $8.046799
≥3000 USD $7.527652
Inventory: 215
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Thickness 890μm
Width 13mm
Length 13mm
Height 1.3mm
Technical
Number of DMA Channels 64
Display & Interface Controllers LCD, Touchscreen
Security Features Cryptography, Random Number Generator
Co-Processors/DSP Multimedia; NEON? SIMD
Additional Interfaces I2C, McASP, McSPI, MMC/SD/SDIO, UART
USB USB 2.0 + PHY (1)
RAM Controllers LPDDR, DDR2, DDR3, DDR3L
Graphics Acceleration Yes
Number of Cores/Bus Width 1 Core 32-Bit
Ethernet 10/100/1000Mbps (1)
Voltage - I/O 1.8V 3.3V
RAM (words) 131072
Integrated Cache YES
Format FIXED POINT
Low Power Mode YES
Boundary Scan YES
Bit Size 32
Supply Current-Max 400mA
Clock Frequency 26MHz
Core Processor ARM? Cortex?-A8
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
Speed 300MHz
Supply Voltage-Min (Vsup) 1.056V
Supply Voltage-Max (Vsup) 1.144V
Base Part Number AM3351
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.65mm
Supply Voltage 1.1V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 5A992C
Number of Terminations 298
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e1
Series Sitara?
Packaging Tray
Operating Temperature 0°C~90°C TJ
Physical
Number of Pins 298
Surface Mount YES
Package / Case 289-LFBGA
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 6 Weeks
Alternative Model
