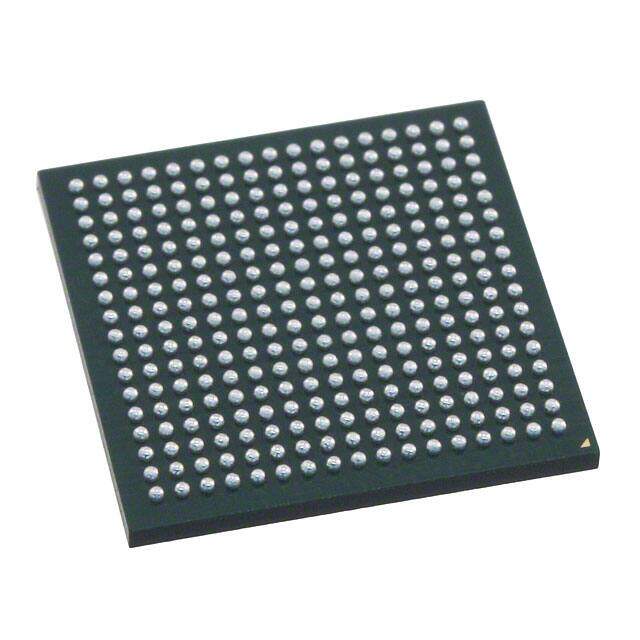

SPEAR310-2
RoHS
RoHS compliant
RoHS compliantPackage 289-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
Microprocessors - MPU MPU ARM926 Cortex 8-ch DMA 32KB Rom
PDF
/
Buying Options
Total Price: USD $21.48
Unit Price: USD $21.47855
≥1 USD $21.47855
≥10 USD $17.62345
≥100 USD $17.07245
≥500 USD $16.5224
≥1000 USD $15.9714
Inventory: 1567
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 15mm
Height Seated (Max) 1.7mm
Technical
Security Features Cryptography
Co-Processors/DSP Security; C3
Additional Interfaces HDLC, I2C, I2S, IrDA, Microwire, MMC/SDIO, SPI, TDM/E1, UART
USB USB 2.0 + PHY (3)
RAM Controllers LPDDR, DDR2
Graphics Acceleration No
Number of Cores/Bus Width 1 Core 32-Bit
Ethernet 10/100Mbps (5)
Voltage - I/O 3.3V
Integrated Cache YES
Format FIXED POINT
Low Power Mode YES
Boundary Scan YES
Core Architecture ARM
Number of Timers/Counters 6
Data Bus Width 16b
Bit Size 32
Core Processor ARM926EJ-S
uPs/uCs/Peripheral ICs Type MICROPROCESSOR, RISC
RAM Size 8kB
Number of I/O 102
Memory Size 32kB
Min Supply Voltage 1.14V
Max Supply Voltage 2.5V
Interface I2C, Serial, UART, USB
Voltage 3.6V
Power Supplies 1.21.83.3V
Operating Supply Voltage 1.2V
Pin Count 289
Base Part Number SPEAR310
Time@Peak Reflow Temperature-Max (s) 30
Frequency 333MHz
Terminal Pitch 0.8mm
Supply Voltage 1.2V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
Subcategory Microprocessors
HTS Code 8542.31.00.01
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 5A002.A.4
Number of Terminations 289
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e1
Series SPEAr?
Packaging Tray
Operating Temperature -40°C~85°C TC
Physical
Number of Pins 289
Package / Case 289-LFBGA
Mount Surface Mount
