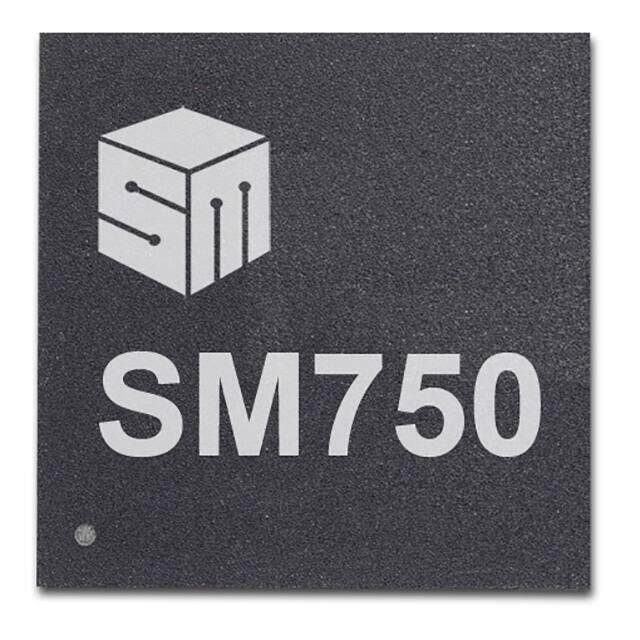

SM750KE160000-AC
RoHS
RoHS compliant
RoHS compliantPackage 265-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
LYNXEXP 16MB HALOGEN FREE + EXT
PDF
/
Buying Options
Total Price: USD $44.55
Unit Price: USD $44.5456
≥1 USD $44.5456
≥10 USD $41.56064
≥100 USD $39.81824
≥500 USD $36.08528
≥1000 USD $34.84096
Inventory: 368
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Package / Case 265-LFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 265
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 1.2V
Terminal Pitch 0.8mm
JESD-30 Code S-PBGA-B265
Supply Voltage-Max (Vsup) 1.26V
Supply Voltage-Min (Vsup) 1.14V
Speed 300MHz
uPs/uCs/Peripheral ICs Type DISPLAY CONTROLLER, PALETTE DAC
Core Processor ARC, ARM, MIPS, PPC, X86
Address Bus Width 13
External Data Bus Width 64
Number of Cores/Bus Width 4 Core
Graphics Acceleration Yes
RAM Controllers DDR
USB USB 3.0
Additional Interfaces GPIO, I2C, SSP, PCI
Co-Processors/DSP Multimedia; GPU
Bus Compatibility I2C; PCI; SPI; SSP
Display & Interface Controllers DMA, DVO, TMDS, LVDS
Display Configuration 1920 X 1440 PIXELS
Dimensions
Height Seated (Max) 1.5mm
Length 17mm
Compliance
RoHS Status ROHS3 Compliant
