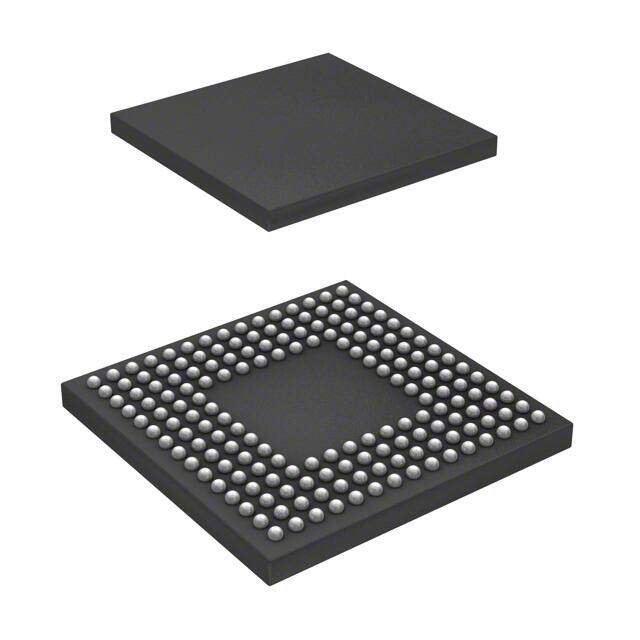

R7S721020VCBG#AC1
RoHS
RoHS compliant
RoHS compliantPackage 176-LFBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
IC MCU 32BIT ROMLESS 176LFBGA
PDF
/
Buying Options
Total Price: USD $14.87
Unit Price: USD $14.872
≥1 USD $14.872
≥10 USD $13.67168
≥100 USD $13.10496
≥500 USD $11.54648
≥1000 USD $10.979778
≥3000 USD $10.271422
Inventory: 340
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Package / Case 176-LFBGA
Surface Mount YES
Number of Pins 176
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Published 2016
Series RZ/A1L
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 176
Subcategory Microcontrollers
Technology CMOS
Terminal Position BOTTOM
Terminal Form BALL
Supply Voltage 1.18V
Terminal Pitch 0.5mm
Frequency 400MHz
Pin Count 176
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 1.26V
Power Supplies 1.183.3V
Supply Voltage-Min (Vsup) 1.1V
Interface CAN, EBI/EMI, Ethernet, I2C, LIN, SCI, SPI, UART, USART, USB
Oscillator Type External
Number of I/O 78
Memory Type ROMless
uPs/uCs/Peripheral ICs Type MICROCONTROLLER, RISC
Core Processor ARM? Cortex?-A9
Peripherals DMA, POR, PWM, WDT
Supply Current-Max 492mA
Bit Size 32
Has ADC YES
DMA Channels YES
PWM Channels YES
DAC Channels NO
Address Bus Width 26
Core Architecture ARM
CPU Family CORTEX-A9
External Data Bus Width 32
Voltage - I/O 1.2V 3.3V
RAM (bytes) 3145728
Ethernet 10/100Mbps
Number of Cores/Bus Width 1 Core 32-Bit
Graphics Acceleration Yes
RAM Controllers SDRAM, SRAM
USB USB 2.0 (2)
Additional Interfaces CAN, I2C, IEBus, IrDA, LIN, MediaLB, MMC/SD/SDIO, SCI, SCI FIFO, SPDIF, SPI, SSI
Co-Processors/DSP Multimedia; NEON? MPE
Display & Interface Controllers VDC
Dimensions
Height Seated (Max) 1.4mm
Length 8mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
