MPC8536AVJATHA
RoHS
RoHS compliant

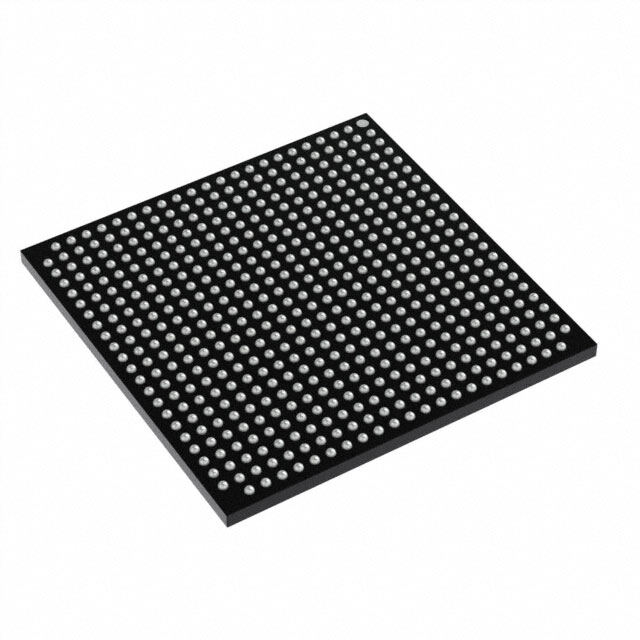

RoHS compliantPackage 783-BBGA, FCBGA
Category Integrated Circuits (ICs) / Embedded - Microprocessors
Description
FIXED POINT MICROPROCESSOR USB 2.0 (3) BALL IC Microprocessor 0C~90C TA 29mm 0.95V 1.25GHz
PDF
/
Buying Options
Total Price: USD $1552.11
Unit Price: USD $1552.10715
≥1 USD $1552.10715
Inventory: 100
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 29mm
Height Seated (Max) 2.76mm
Technical
SATA SATA 3Gbps (2)
Additional Interfaces DUART, I2C, MMC/SD, PCI, SPI
USB USB 2.0 (3)
RAM Controllers DDR2, DDR3
Graphics Acceleration No
Number of Cores/Bus Width 1 Core 32-Bit
Ethernet 10/100/1000Mbps (2)
Voltage - I/O 1.8V 2.5V 3.3V
Integrated Cache YES
Format FIXED POINT
External Data Bus Width 64
Low Power Mode YES
Boundary Scan YES
Address Bus Width 16
Bit Size 32
Core Processor PowerPC e500
uPs/uCs/Peripheral ICs Type MICROPROCESSOR
Speed 1.25GHz
Supply Voltage-Min (Vsup) 0.95V
Supply Voltage-Max (Vsup) 1.05V
JESD-30 Code S-PBGA-B783
Terminal Pitch 1mm
Supply Voltage 1V
Peak Reflow Temperature (Cel) 260
Terminal Form BALL
Terminal Position BOTTOM
Technology CMOS
HTS Code 8542.31.00.01
ECCN Code 3A991.A.2
Number of Terminations 783
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Series MPC85xx
Published 2002
Packaging Tray
Operating Temperature 0°C~90°C TA
Physical
Surface Mount YES
Package / Case 783-BBGA, FCBGA
Supply Chain
Factory Lead Time 18 Weeks
